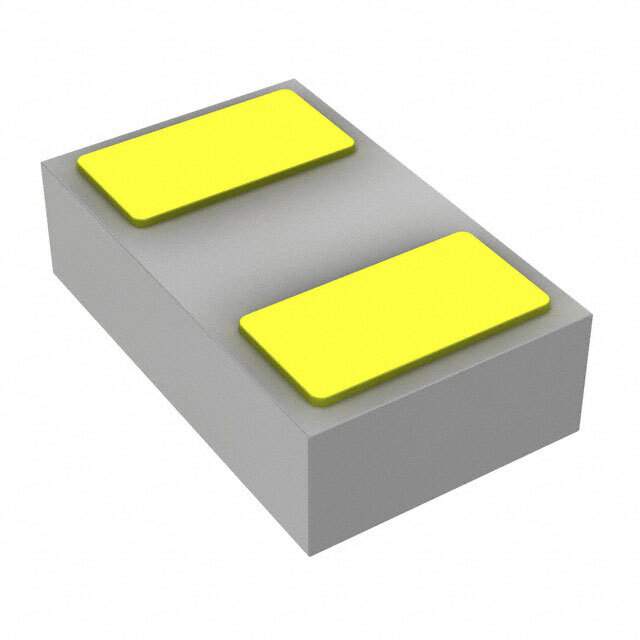

Same model may have multiple batches, images only for reference.

VSKY05301006-G4-08

Name: VSKY05301006-G4-08
Brand: Vishay
SKU: 1324245
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	VSKY05301006-G4-08
Manufacturer	Vishay
Catalog	Diodes, Rectifiers - Single
Description	DIODE SCHTKY 30V 500MA CLP10062L / Diode Schottky 30 V 500mA Surface Mount CLP1006-2L
Datasheet	VSKY05301006-G4-08 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Rectifiers - Single
Manufacturer	Vishay General Semiconductor - Diodes Division
Packaging	Reel - TR
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30 V
Current - Average Rectified (Io)	500mA
Voltage - Forward (Vf) (Max) @ If	430 mV @ 500 mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	75 µA @ 30 V
Capacitance @ Vr, F	140pF @ 0V, 1MHz
Mounting	Surface Mount
Case / Package	0402 (1006 Metric)
Supplier Device Package	CLP1006-2L
Operating Temperature - Junction	150°C (Max)
Base Product Number	VSKY05301006
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0070
Other Part Number	VSKY05301006-G4-08GITR,VSKY05301006-G4-08GICT,VSKY05301006-G4-08GIDKR
Standard Package	10,000
Win Source Part Number	1324245-VSKY05301006-G4-08
Ultra Librarian 3D Model	Ultra Librarian VSKY05301006-G4-08 CAD Model

Alternative Products

Description

The VSKY05301006-G4-08 is a Schottky type rectifier diode designed for discrete semiconductor products.

Win Source Part Number: 1324245-VSKY05301006-G4-08
Packaging: Reel
Maximum DC Reverse Voltage: 30V
Maximum Forward Voltage: 430mV @ 500mA
Current Average Rectified: 500mA
Reverse Leakage Current: 75μA @ 30V
Capacitance: 140pF @ 0V, 1MHz
Operating Temperature Range: 150°C (Max)
Standard Package: 10,000
Manufacturer: Vishay General Semiconductor - Diodes Division
