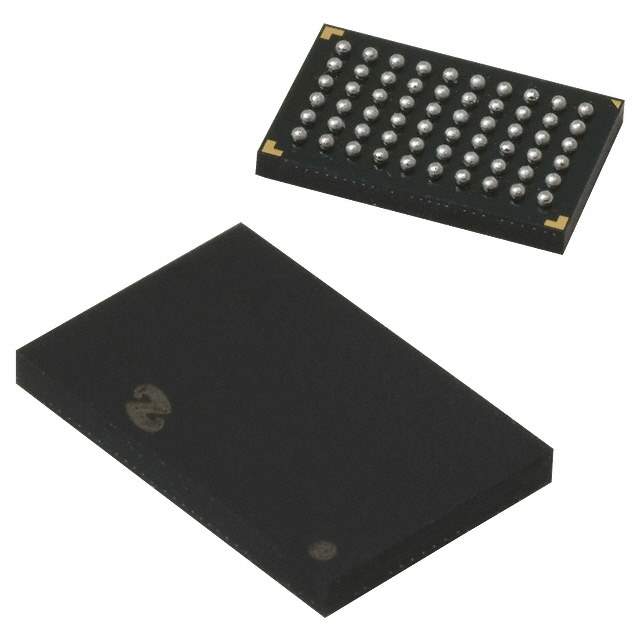

LMX9830SMX/NOPB

Part No LMX9830SMX/NOPB
Manufacturer Texas Instruments
Catalog RF Transceiver ICs
Description IC RF TXRX+MCU BLUETOOTH 60TFBGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type TxRx + MCU
RF Family/Standard Bluetooth
Protocol Bluetooth v2.0
Modulation MSK
Frequency 2.4GHz
Data Rate (Max) 704kbps
Power - Output 0dBm
Sensitivity -80dBm
Memory Size 16kB RAM
Serial Interfaces JTAG, SPI, UART
GPIO 3
Supply Voltage - Operating 2.5 V to 3.6 V
Current - Receiving 65mA (Max)
Current - Transmitting 65mA (Max)
Temperature Range - Operating -40°C to 125°C
Dimension 60-TFBGA
Win Source Part Number 135649-LMX9830SMX/NOPB
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LMX9830SMX/NOPB CAD Model

Description

The is a Bluetooth Serial Port Module from Texas Instruments, a leading global semiconductor company. It provides a seamless wireless communication link between two devices.

  • Features: 2.4 GHz ISM band, 1 Mbps data rate, -80 dBm sensitivity, 4 dBm output power
  • Power Consumption: Operates on a single 3.3V power supply, supports low power mode
  • Security: Secure simple pairing, link key generation, and encryption
  • Profiles: Serial Port Profile (SPP), Generic Access Profile (GAP), Service Discovery Application Profile (SDAP)
  • Compliance: RoHS compliant
