Same model may have multiple batches, images only for reference.

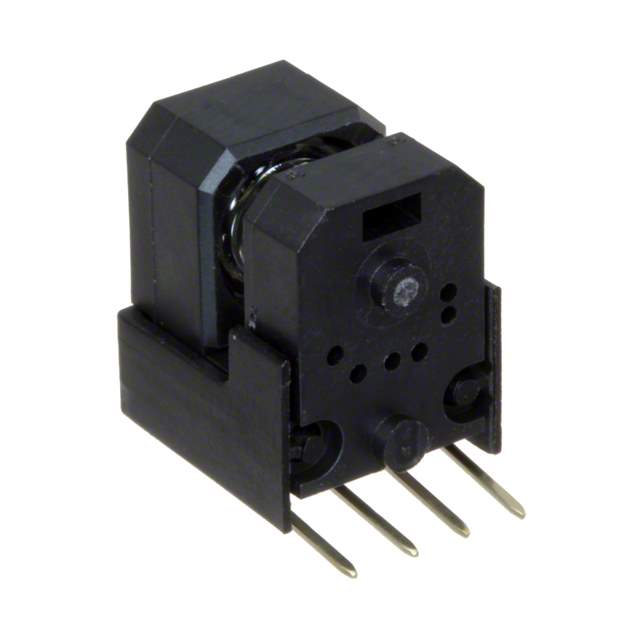

HEDS-9701#F51 Real Image
Same model may have multiple batches, images only for reference.

HEDS-9701#F51

Part No HEDS-9701#F51
Manufacturer Broadcom Limited
Catalog Encoders
Description ROTARY ENCODER OPTICAL 256PPR / Rotary Encoder Optical 256 Quadrature (Incremental) Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Encoders
Mfr Broadcom Limited
Series HEDS
Package Bulk
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 256
Voltage - Supply 5V
Actuator Type Codewheel Not Included
Detent No
Built in Switch No
Mounting Type Chassis Mount
Orientation Right Angle
Termination Style Terminal Pins
Base Product Number HEDS-9701
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.4500
Standard Package 50
Win Source Part Number 1186414-HEDS-9701#F51
Ultra Librarian 3D Model Ultra Librarian HEDS-9701#F51 CAD Model

Description

The HEDS-9701#F51 is an optical encoder from Broadcom Limited.

  • Win Source Part Number: 1186414
  • Series: HEDS
  • Voltage Supply: 5V
  • Output Type: Quadrature (Incremental)
  • Rotational Life: - cycles minimum
  • Mounting Type: Chassis Mount
  • Detent: No
  • Pulses Per Revolution: 256
  • Packaging: Bulk
  • Orientation: Right-Angle
  • Built-In Switch: No
  • Terminal Pin Termination Style: -
  • REACH: Not affected
  • ECCN: EAR99
  • HTSUS: 8543.70.4500
