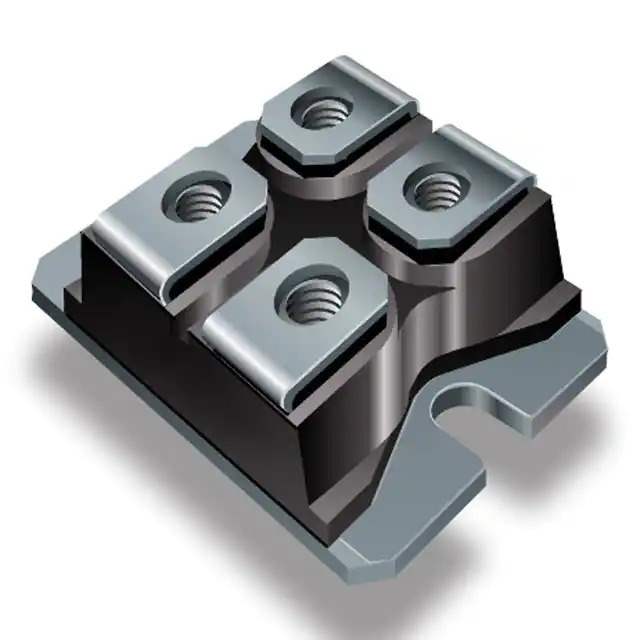

VS-UFB201FA40 Real Image
Same model may have multiple batches, images only for reference.

VS-UFB201FA40

Part No VS-UFB201FA40
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE GEN PURP 400V 120A SOT227
Datasheet
VS-UFB201FA40 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Vishay
Package Bulk
Product Status Active
Diode Configuration 2 Independent
Technology Standard
Voltage - DC Reverse (Vr) (Max) 400 V
Current - Average Rectified (Io) (per Diode) 120A
Voltage - Forward (Vf) (Max) @ If 1.59 V @ 100 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 80 ns
Current - Reverse Leakage @ Vr 50 µA @ 400 V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Type Chassis Mount
Package / Case SOT-227-4, miniBLOC
Supplier Device Package SOT-227
Base Product Number UFB201
Standard Package 160 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 743129-VS-UFB201FA40
Ultra Librarian 3D Model Ultra Librarian VS-UFB201FA40 CAD Model

Description

The 743129-VS-UFB201FA40 is a diode array from Vishay.

  • Speed: less than 500ns
  • Forward Voltage: 1.59V @ 100A
  • Reverse Recovery Time: 80ns
  • Reverse Leakage Current: 50 µA @ 400V
  • Current Rating: 120A
  • Package: SOT-227-4, miniBLOC package
  • Mounting: chassis mount
  • Temperature Range: -55°C to 175°C
