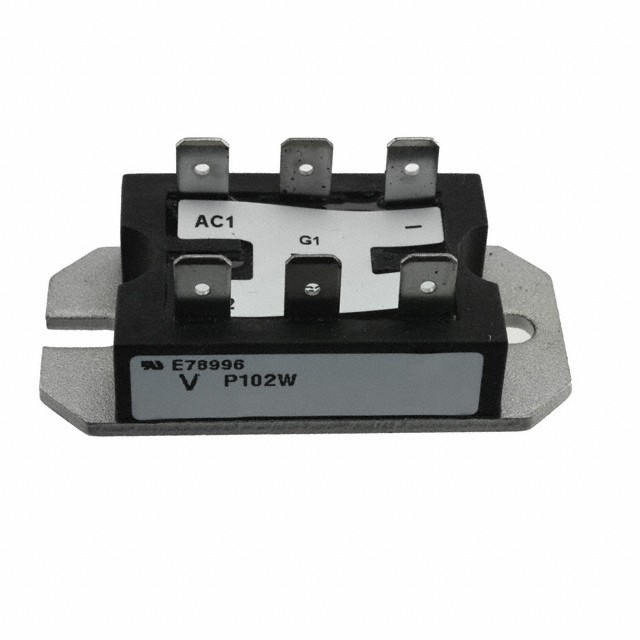

VS-P102KW Vishay
Same model may have multiple batches, images only for reference.

VS-P102KW

Part No VS-P102KW
Manufacturer Vishay
Catalog SCRs - Single - Modules
Description SCR HY-BRIDGE 600V 25A PACE-PAK
Datasheet
VS-P102KW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Bulk
Status Active
Structure Bridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes 2 SCRs, 2 Diodes
Voltage - Off State 600V
Current - On State (It (RMS)) (Max) 25A (DC)
Voltage - Gate Trigger (Vgt) (Max) 2V
Current - Gate Trigger (Igt) (Max) 60mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 357A, 375A
Current - Hold (Ih) (Max) 130mA
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting Chassis Mount
Dimension 8-PACE-PAK
Win Source Part Number 1101147-VS-P102KW
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VS-P102KW CAD Model

Description

The Vishay 1101147-VS-P102KW is a bridge, single phase SCR/diode product with a maximum off state voltage of 600V and a maximum gate trigger voltage of 2V.

  • Current Rating: 25A (DC)
  • Non-Repetitive Surge Current: 357A, 375A @ 50, 60Hz (Itsm)
  • Current Hold: 130mA (Max)
  • Gate Trigger Current: 60mA (Max)
  • Package: 8-PACE-PAK
  • Temperature Range: -40°C to 125°C (TJ)
  • Category: Discrete Semiconductor Product
  • Product Status: Active
  • Supply and Demand Status: Balanced
