Same model may have multiple batches, images only for reference.

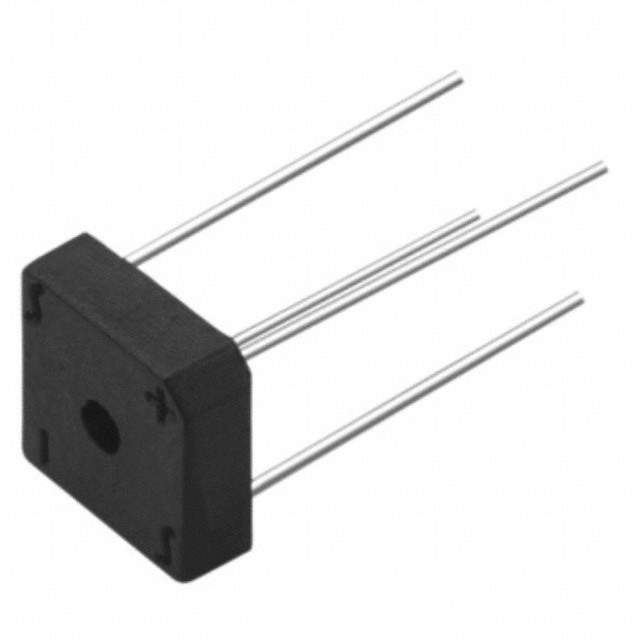

VS-KBPC806PBF Real Image
Same model may have multiple batches, images only for reference.

VS-KBPC806PBF

Part No VS-KBPC806PBF
Manufacturer Vishay
Catalog Bridge Rectifiers
Description BRIDGE RECTIFIER 600V 8.0A D-72
Datasheet
VS-KBPC806PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Bulk
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600V
Current - Average Rectified (Io) 8A
Voltage - Forward (Vf) (Max) @ If 1V @ 3A
Current - Reverse Leakage @ Vr 10μA @ 600V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package D-72
Win Source Part Number 002145-VS-KBPC806PBF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VS-KBPC806PBF CAD Model

Description

This Vishay electronic component is a single phase diode with an average rectified current of 8A and a maximum forward voltage of 1V @ 3A.

  • Average Rectified Current: 8A
  • Maximum Forward Voltage: 1V @ 3A
  • Current Reverse Leakage: 10μA @ 600V
  • Maximum Peak Reverse Voltage: 600V
  • Temperature Range for Operating: -55°C to 150°C (TJ)
