Same model may have multiple batches, images only for reference.

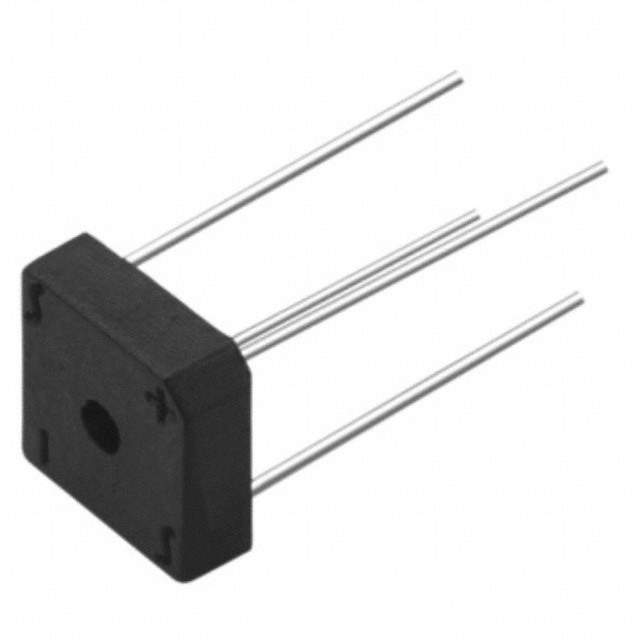

VS-KBPC601PBF Real Image
Same model may have multiple batches, images only for reference.

VS-KBPC601PBF

Part No VS-KBPC601PBF
Manufacturer Vishay
Catalog Bridge Rectifiers
Description MOD BRIDGE 1PH 6A D-72
Datasheet
VS-KBPC601PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 100V
Current - Average Rectified (Io) 6A
Current - Reverse Leakage @ Vr 10μA @ 100V
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-Square, D-72
Manufacturer Package D-72
Win Source Part Number 777980-VS-KBPC601PBF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VS-KBPC601PBF CAD Model

Description

The Vishay 777980-VS-KBPC601PBF is a single-phase standard diode. The specifications are as follows:

  • Average Rectified Current: 6A
  • Peak Reverse Voltage: 100V
  • Reverse Leakage Current: 10μA @ 100V
  • Mounting: Through-hole
  • Package: 4-Square, D-72
  • Category: Discrete Semiconductor Products
  • Manufacturer: Vishay Semiconductor Diodes Division
