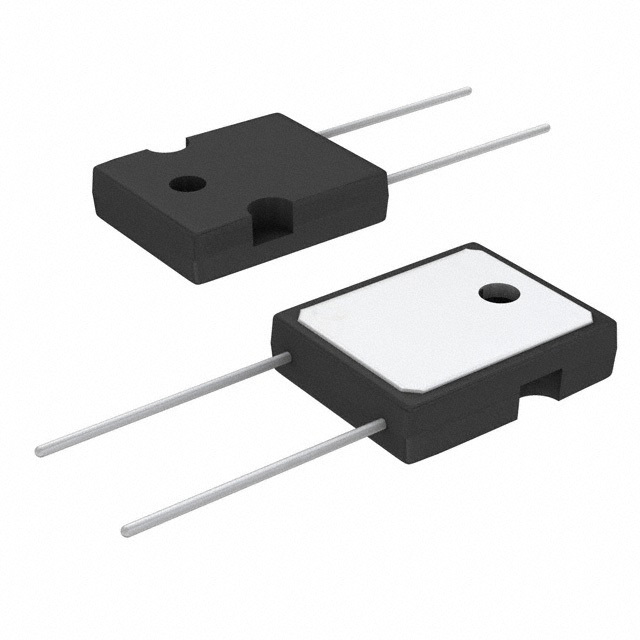

Same model may have multiple batches, images only for reference.

VS-E5PX6012L-N3

Name: VS-E5PX6012L-N3
Brand: Vishay
SKU: 1356569
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	VS-E5PX6012L-N3
Manufacturer	Vishay
Catalog	Diodes, Rectifiers - Single
Description	DIODE GEN PURP 1.2KV 60A TO247AD / Diode 1200 V 60A Through Hole TO-247AD
Datasheet	VS-E5PX6012L-N3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr	Vishay General Semiconductor - Diodes Division
Series	FRED Pt®
Package	Tube
Product Status	Active
Technology	Standard
Voltage - DC Reverse (Vr) (Max)	1200 V
Current - Average Rectified (Io)	60A
Voltage - Forward (Vf) (Max) @ If	3.15 V @ 60 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	120 ns
Current - Reverse Leakage @ Vr	50 µA @ 1200 V
Capacitance @ Vr, F	-
Mounting Type	Through Hole
Package / Case	TO-247-2
Supplier Device Package	TO-247AD
Operating Temperature - Junction	-55°C ~ 175°C
Base Product Number	E5PX6012
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1356569-VS-E5PX6012L-N3
Ultra Librarian 3D Model	Ultra Librarian VS-E5PX6012L-N3 CAD Model

Alternative Products

Description

The VS-E5PX6012L-N3 is a single rectifier diode from Vishay General Semiconductor - Diodes Division.

Diode Type: Standard
Voltage - DC Reverse (Vr) (Max): 1200V
Current - Average Rectified (Io): 60A
Voltage - Forward (Vf) (Max) @ If: 3.15V @ 60A
Speed: Fast Recovery =
Reverse Recovery Time (trr): 120ns
Current - Reverse Leakage @ Vr: 50µA @ 1200V
Package / Case: TO-247-2
Mounting Type: Through Hole
Series: FRED Pt®
