Same model may have multiple batches, images only for reference.

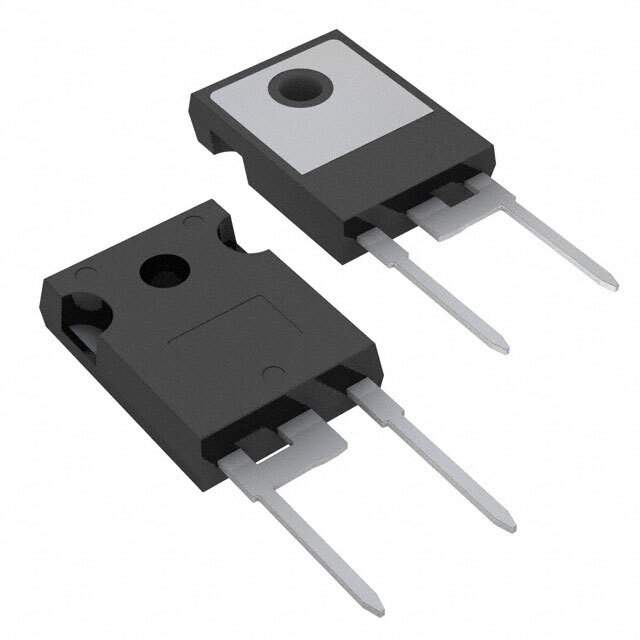

VS-E4PH6006L-N3 Real Image
Same model may have multiple batches, images only for reference.

VS-E4PH6006L-N3

Part No VS-E4PH6006L-N3
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 600V 60A TO247AD / Diode Standard 600 V 60A Through Hole TO-247AC Modified
Datasheet
VS-E4PH6006L-N3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Vishay General Semiconductor - Diodes Division
Series FRED Pt®
Package Tube
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) 60A
Voltage - Forward (Vf) (Max) @ If 2 V @ 60 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 68 ns
Current - Reverse Leakage @ Vr 50 µA @ 600 V
Mounting Type Through Hole
Package / Case TO-247-2
Supplier Device Package TO-247AC Modified
Operating Temperature - Junction -55°C ~ 175°C
Base Product Number E4PH6006
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.10.0080
Other Names VS-E4PH6006L-N3GICT-ND,VS-E4PH6006L-N3GIDKRINACTIVE,VS-E4PH6006L-N3GITR,VS-E4PH6006L-N3GIDKR,VS-E4PH6006L-N3GITR-ND,VS-E4PH6006L-N3GIDKR-ND,VS-E4PH6006L-N3GICT,VS-E4PH6006L-N3GI,VS-E4PH6006L-N3GICTINACTIVE
Standard Package 25
Win Source Part Number 1104250-VS-E4PH6006L-N3
Ultra Librarian 3D Model Ultra Librarian VS-E4PH6006L-N3 CAD Model

Description

The VS-E4PH6006L-N3 is a fast recovery rectifier diode from the FRED Pt series of discrete semiconductor products. It is designed for use in rectifying AC to DC circuits.

  • Voltage Rating: 600V
  • Average Rectified Current: 60A
  • Forward Voltage Drop: 2V @ 60A
  • Reverse Recovery Time: 68ns
  • Temperature Range: -55°C to 175°C
  • Mounting Technology: Through-Hole
  • Package: TO-247-2
  • Packaging: Tube
