Same model may have multiple batches, images only for reference.

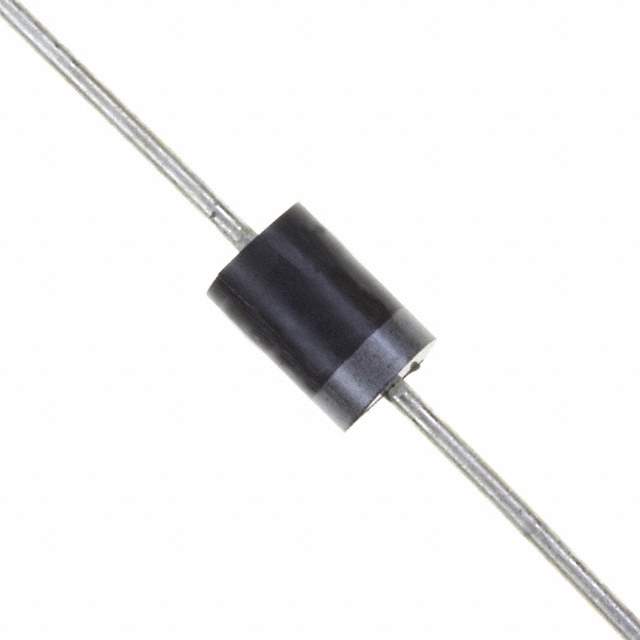

VS-80SQ045TR Real Image
Same model may have multiple batches, images only for reference.

VS-80SQ045TR

Part No VS-80SQ045TR
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 45V 8A DO204AR
Datasheet
VS-80SQ045TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features Diode Schottky 45 V 8A Through Hole DO-204AR
Manufacturer Vishay
Package Reel - TR
Part Status Obsolete
Speed Fast Recovery =< 500ns, > 200mA (Io)
Mounting Through Hole
Package DO-204AR, Axial
Case / Package DO-204AR
Family Name 80SQ045
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 80SQ045TR, VS-80SQ045TR-ND, VS80SQ045TR, VS80SQ045TR-ND
Quantity per package 1500
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 858332-VS-80SQ045TR
Ultra Librarian 3D Model Ultra Librarian VS-80SQ045TR CAD Model

Description

The 858332-VS-80SQ045TR is a Schottky diode manufactured by Vishay.

  • Diode Configuration: 1 pair common cathode
  • Maximum Voltage: 45V
  • Forward Voltage: 570mV @ 7.5A
  • Package: DO-204AR, Axial
  • Mounting: Through Hole
  • Status: Obsolete
  • Popularity: Medium
  • Supply and Demand: Limited
  • Quantity per Package: 1500
