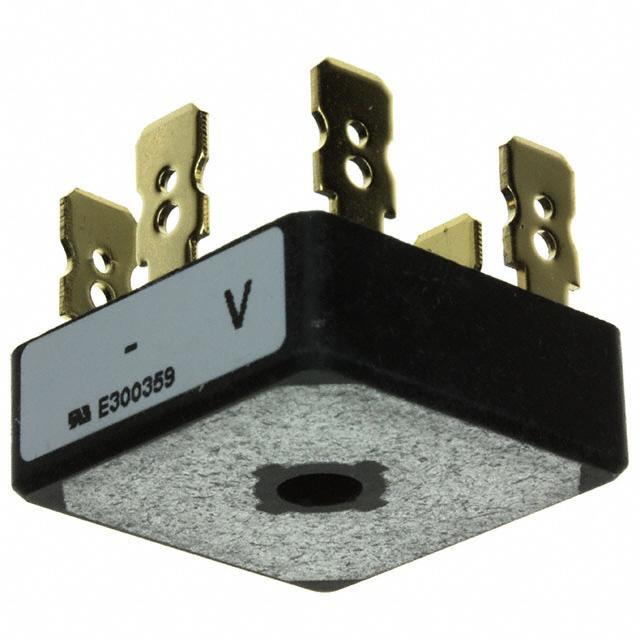

VS-26MT120 Vishay
Same model may have multiple batches, images only for reference.

VS-26MT120

Part No VS-26MT120
Manufacturer Vishay
Catalog Bridge Rectifiers
Description RECTIFIER BRIDGE 1200V 25A D63
Datasheet
VS-26MT120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Three Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 1200V
Current - Average Rectified (Io) 25A
Current - Reverse Leakage @ Vr 100μA @ 1200V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting QC Terminal
Package 5-Square, D-63
Manufacturer Package D-63
Win Source Part Number 762035-VS-26MT120
Popularity Medium
Supply and Demand Status Limited
Family Name VS-26MT120
Introduction Date February 16, 2014
ECCN EAR99
Halogen Free Unknown
Estimated EOL Date 2037
Ultra Librarian 3D Model Ultra Librarian VS-26MT120 CAD Model

Description

The Vishay Semiconductor Diodes Division VS-26MT120 is a standard three-phase diode manufactured by Vishay Semiconductor Diodes Division.

  • Current Rating: 25A
  • Voltage Rating: 1200V
  • Packaging: D-63
  • Mounting: QC terminals
  • Operating Temperature Range: -55°C to 150°C
  • Family: VS-26MT120
  • Halogen-Free: Compliant
  • Alternative Parts: MT3510, MT3512, MT3512-G
  • Supply and Demand Status: Limited
