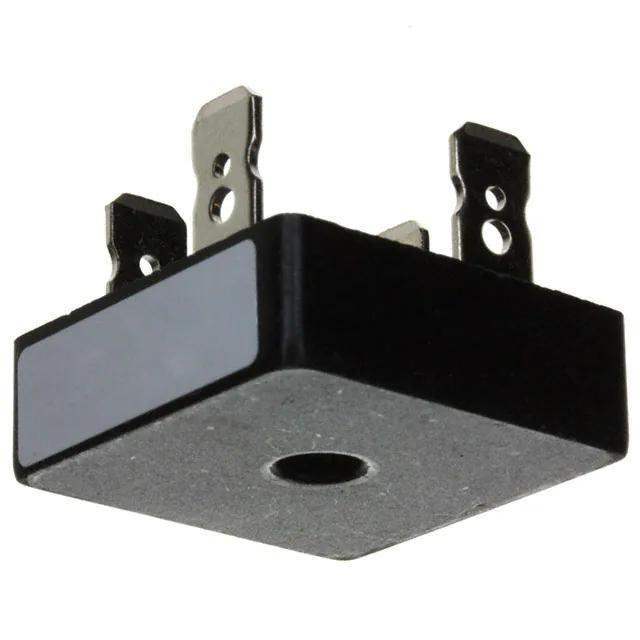

VS-26MB120A Vishay
Same model may have multiple batches, images only for reference.

VS-26MB120A

Part No VS-26MB120A
Manufacturer Vishay
Catalog Bridge Rectifiers
Description BRIDGE RECT 1P 1.2KV 25A D-34
Datasheet
VS-26MB120A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 300000904-VS-26MB120A
Manufacturer Vishay
Category Discrete Semiconductor Products -Diodes Bridge Rectifiers
Package Bulk
Package / Case 4-Square, D-34
Supplier Device Package D-34
Mounting Type QC Terminal
Operating Temperature -55°C ~ 150°C (TJ)
Current - Reverse Leakage @ Vr 10 µA @ 1200 V
Technology Standard
Diode Type Single Phase
Ultra Librarian 3D Model Ultra Librarian VS-26MB120A CAD Model

Description

The Vishay diode bridge rectifier is a discrete semiconductor product with a single-phase diode type.

  • Diode Type: single-phase
  • Package: bulk
  • Terminal Mounting Type: QC
  • Supplier Device Package: D-34
  • Package/Case: 4-square, D-34
  • Operating Temperature: -55°C to 150°C (TJ)
  • Reverse Leakage: 10μA @ 1200V
