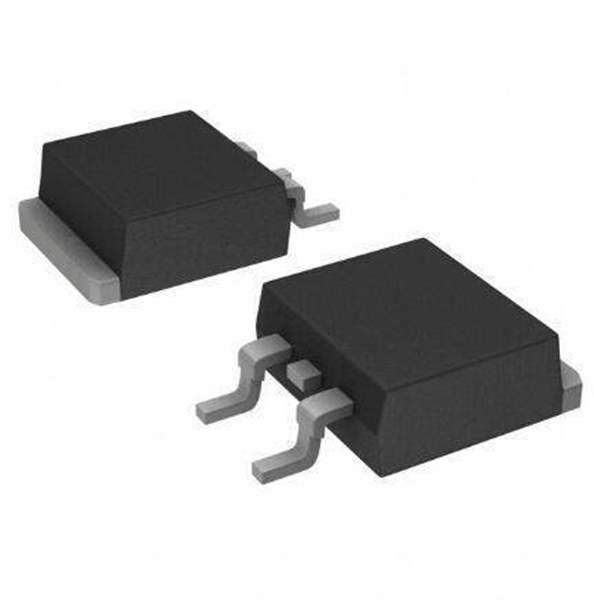

VS-25TTS12STRL-M3Vishay General Semiconductor - Diodes Division
Same model may have multiple batches, images only for reference.

VS-25TTS12STRL-M3

Part No VS-25TTS12STRL-M3
Manufacturer Vishay
Catalog Thyristors—SCRs
Description SCR 1.2KV 25A TO263AB
Datasheet
VS-25TTS12STRL-M3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Win Source Part Number Vishay General Semiconductor - Diodes Division
Category Discrete Semiconductor Products Thyristors SCRs
Part Status Active
Voltage - Off State 1.2 kV
Voltage - Gate Trigger (Vgt) (Max) 2 V
Current - Gate Trigger (Igt) (Max) 45 mA
Voltage - On State (Vtm) (Max) 1.25 V
Current - On State (It (RMS)) (Max) 25 A
Current - Hold (Ih) (Max) 150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 350A @ 50Hz
SCR Type Standard Recovery
Win Source Part Number WS1305764-VS-25TTS12STRL-M3
Ultra Librarian 3D Model Ultra Librarian VS-25TTS12STRL-M3 CAD Model

Description

The VS-25TTS...S-M3 high voltage series of silicon controlled rectifiers are specifically designed for medium power switching and phase control applications. The glass passivation technology used has reliable operation up to 125 °C junction temperature.
