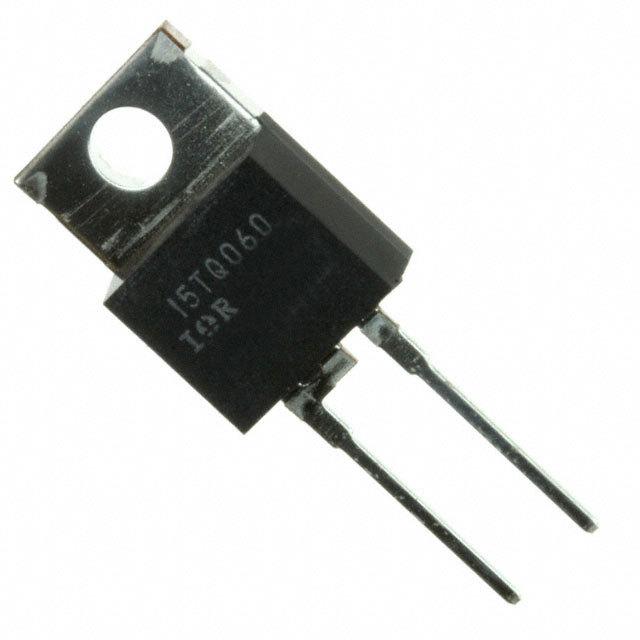

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 15V
Current - Average Rectified (Io) 20A
Voltage - Forward (Vf) (Maximum) @ If 410mV @ 19A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 10mA @ 15V
Mounting Style Through Hole
Package TO-220-2
Manufacturer Package TO-220AC
Operating Temperature - Junction -55°C ~ 125°C
Win Source Part Number 761758-VS-20L15TPBF
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Family Name VS-20L15T
Introduction Date June 19, 2007
ECCN EAR99
Halogen Free Not Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian VS-20L15TPBF CAD Model

Description

The Vishay Semiconductor Diodes Division VS-20L15TPBF is a fast recovery diode that is a reliable option for your electronic needs.

  • Category: Discrete Semiconductor Products
  • Current Average Rectified (Io): 20A
  • Win Source Part Number: 761758-VS-20L15TPBF
  • Supply/Demand Status: Limited
  • Package: TO-220-2
  • Voltage Forward (Vf): 410mV @ 19A
