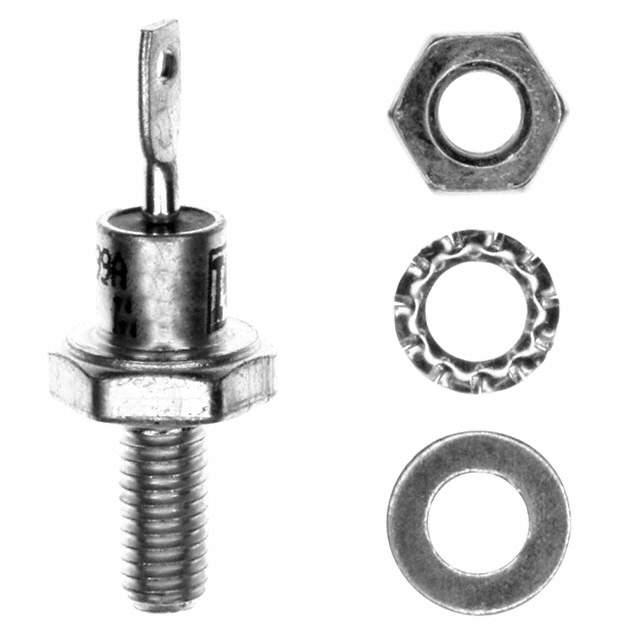

VS-16F80 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 800V
Current - Average Rectified (Io) 16A
Voltage - Forward (Vf) (Maximum) @ If 1.23V @ 50A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 12mA @ 800V
Mounting Chassis, Stud Mount
Package DO-203AA, DO-4, Stud
Manufacturer Package DO-203AA
Operating Temperature - Junction -65°C ~ 175°C
Manufacturer Vishay
Manufacturer Homepage www.vishay.com
Win Source Part Number 735749-VS-16F80
Popularity Medium
Supply and Demand Status Limited
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian VS-16F80 CAD Model

Description

The Vishay 735749-VS-16F80 is a standard recovery diode.

  • Average Rectified Current: 16A
  • Maximum Reverse Voltage: 800V
  • Forward Voltage: 1.23V @ 50A
  • Current Leakage: 12mA @ 800V
  • Operating Junction Temperature Range: -65°C to 175°C
  • Case: DO-203AA
  • Mounting: Chassis, Stud Mount
  • Sector: Industrial
  • Estimated EOL Date: 2024
