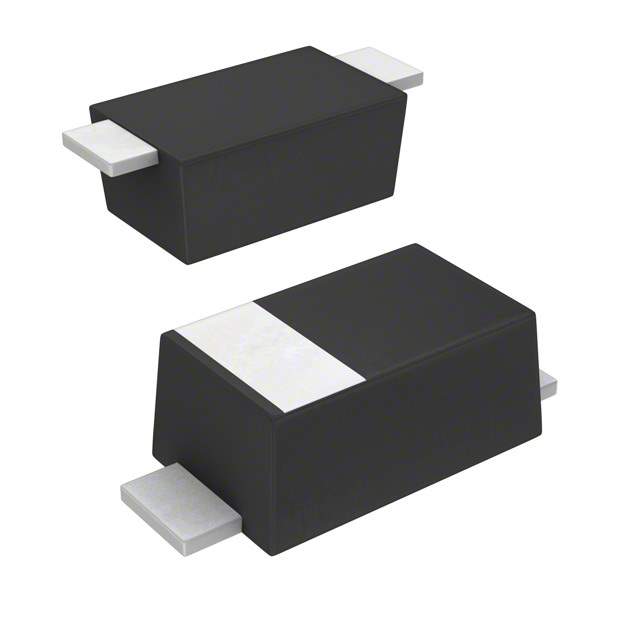

DB2230600L Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 450mV @ 2A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 13ns
Current - Reverse Leakage @ Vr 500μA @ 30V
Capacitance @ Vr, F 43pF @ 10V, 1MHz
Mounting SMD (SMT)
Case / Package Mini2-F4-B
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 1032659-DB2230600L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DB2230600L CAD Model

Description

The Panasonic Electronic Components Schottky Diode is a high-performance diode that is designed for use in a variety of electronic applications.

  • Maximum Reverse Voltage: 30V
  • Average Rectified Current: 2A
  • Forward Voltage: 450mV @ 2A
  • Reverse Recovery Time: 13ns
  • Capacitance: 43pF @ 10V and 1MHz
  • Operating Temperature Range: -55°C to 125°C
  • Package: Mini2-F4-B
  • Packaging: Reel - TR
  • Status: Active
  • Popularity: Medium
