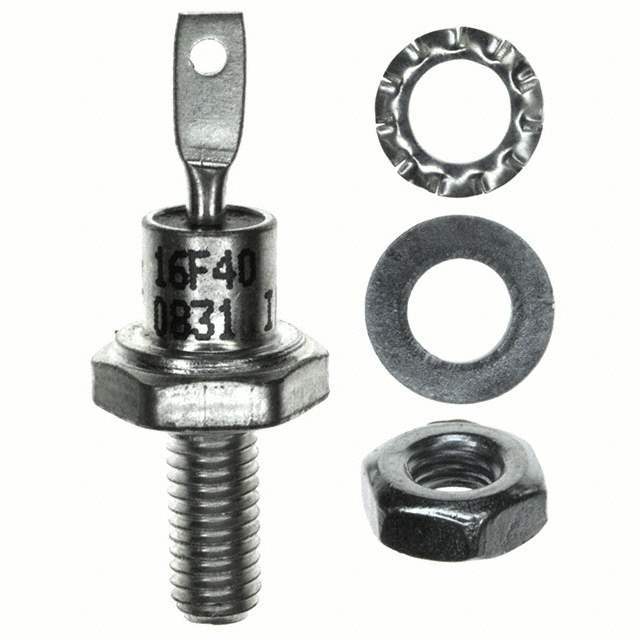

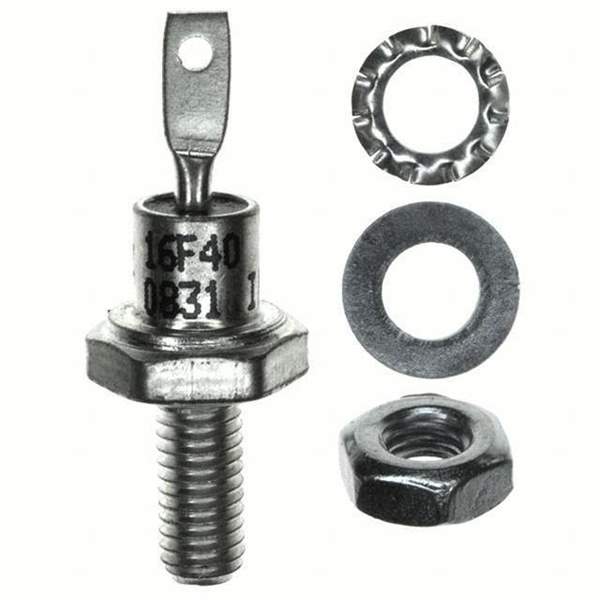

VS-16F40 Vishay General Semiconductor - Diodes Division
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1307575-VS-16F40
Category Discrete Semiconductor Products > Diodes >Rectifiers >Single Diodes
Mfr Vishay General Semiconductor - Diodes Division
Packaging Bulk
Part Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 400 V
Current - Average Rectified (Io) 16A
Voltage - Forward (Vf) (Max) @ If 1.23 V @ 50 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 12 mA @ 400 V
Ultra Librarian 3D Model Ultra Librarian VS-16F40 CAD Model

Description

  • High surge current capability
  • Stud cathode and stud anode version
  • Wide current range
  • Types up to 1200 V VRRM
