Same model may have multiple batches, images only for reference.

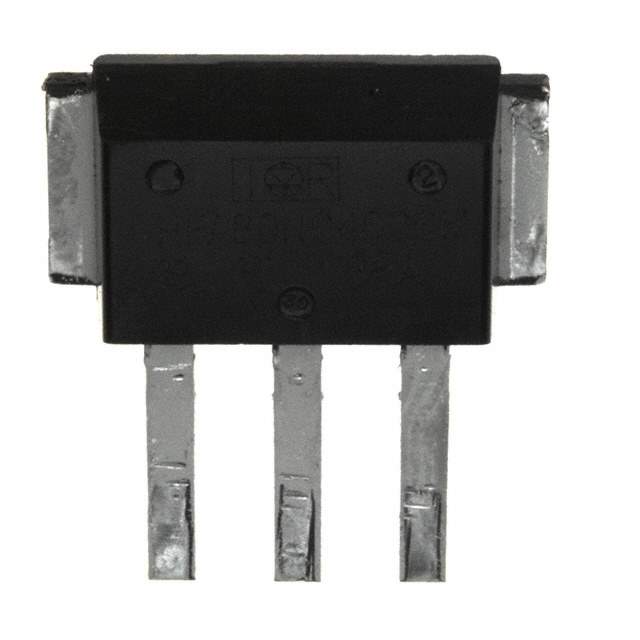

VS-110CNQ045ASMPBF Real Image
Same model may have multiple batches, images only for reference.

VS-110CNQ045ASMPBF

Part No VS-110CNQ045ASMPBF
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 45V D618SM
Datasheet
VS-110CNQ045ASMPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 45V
Current - Average Rectified (Io) (per Diode) 110A
Voltage - Forward (Vf) (Max) @ If 700mV @ 110A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 3mA @ 45V
Operating Temperature - Junction 150°C (Max)
Mounting Through Hole
Case / Package D-61-8-SM
Win Source Part Number 108294-VS-110CNQ045ASMPBF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 400
Ultra Librarian 3D Model Ultra Librarian VS-110CNQ045ASMPBF CAD Model

Description

The Vishay 108294-VS-110CNQ045ASMPBF is a through-hole Schottky diode with a maximum reverse voltage of 45V and a forward voltage of 700mV @ 110A.

  • Maximum Reverse Voltage: 45V
  • Forward Voltage: 700mV @ 110A
  • Current - Reverse Leakage @ Vr: 3mA @ 45V
  • Operating Temperature - Junction: 150°C (Max)
  • Supply and Demand: Sufficient
  • Packaging: Tube/Rail
  • Category: Discrete Semiconductor Products
