Same model may have multiple batches, images only for reference.

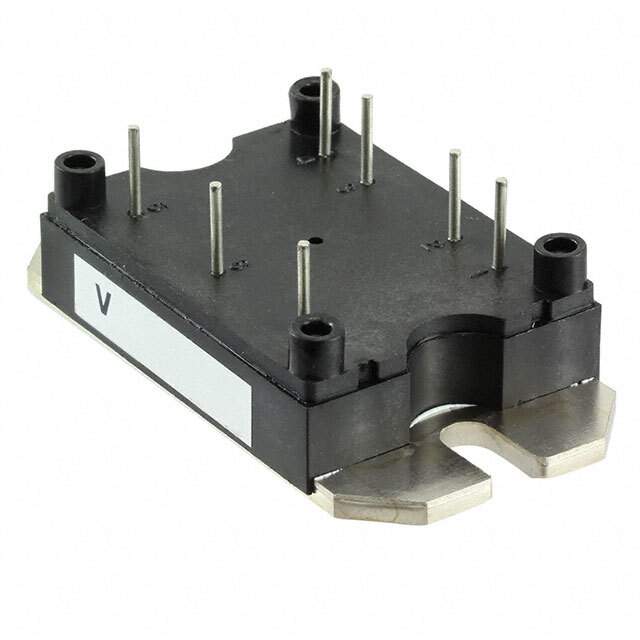

VS-100MT160PAPBF Real Image
Same model may have multiple batches, images only for reference.

VS-100MT160PAPBF

Part No VS-100MT160PAPBF
Manufacturer Vishay
Catalog Bridge Rectifiers
Description BRIDGE RECT 3P 1.6KV 100A 7MTPB / Bridge Rectifier Three Phase Standard 1.6 kV Chassis Mount 7-MTPB
Datasheet
VS-100MT160PAPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Manufacturer Vishay General Semiconductor - Diodes Division
Packaging Bulk
Diode Type Three Phase
Technology Standard
Voltage - Peak Reverse (Max) 1.6 kV
Current - Average Rectified (Io) 100 A
Voltage - Forward (Vf) (Max) @ If 1.51 V @ 100 A
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Chassis Mount
Case / Package 7-MTPB
Supplier Device Package 7-MTPB
Base Product Number 100MT160
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number VS100MT160PAPBF,Q3744328,100MT160PAPBF,VS-100MT160PAPBF-ND,VS100MT160PAPBF-ND
Standard Package 15
Win Source Part Number 1325179-VS-100MT160PAPBF
Ultra Librarian 3D Model Ultra Librarian VS-100MT160PAPBF CAD Model

Description

The 1325179-VS-100MT160PAPBF is a three-phase bridge rectifier that is ideal for use in high-power applications.

  • Average Rectified Current: 100 A
  • Peak Reverse Voltage: 1.6 kV
  • Forward Voltage: 1.51 V @ 100 A
  • Operating Temperature: -40°C to 150°C
  • Package: 7-MTPB
  • Mounting Type: Chassis Mounting
