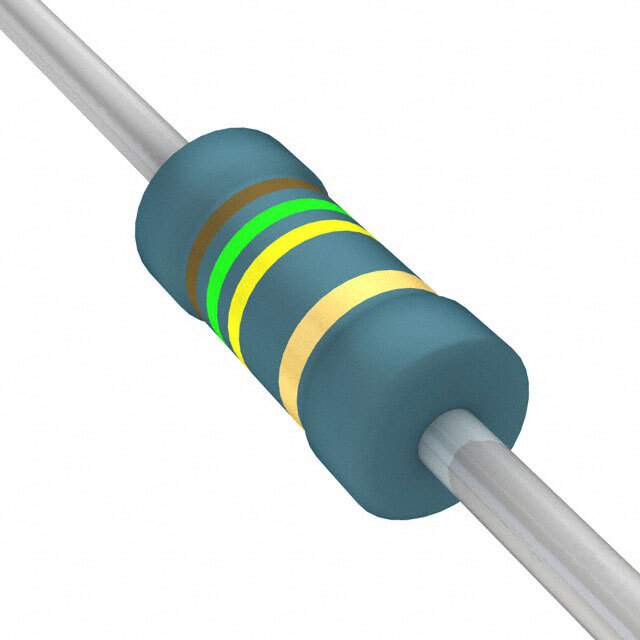

Same model may have multiple batches, images only for reference.

VR68000001503JAC00

Name: VR68000001503JAC00
Brand: Vishay
SKU: 1337578
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	VR68000001503JAC00
Manufacturer	Vishay
Catalog	Through Hole Resistors
Description	RES 150K OHM 1W 5% AXIAL / 150 kOhms ±5% 1W Through Hole Resistor Axial High Voltage, Pulse Withstanding Metal Film
Datasheet	VR68000001503JAC00 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors - Through Hole Resistors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	VR68
Package	Cut Tape (CT) Tape & Box (TB)
Resistance	150 kOhms
Tolerance	±5%
Power (Watts)	1W
Composition	Metal Film
Features	High Voltage, Pulse Withstanding
Temperature Coefficient	±200ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Package / Case	Axial
Supplier Device Package	Axial
Size / Dimension	0.268" Dia x 0.709" L (6.80mm x 18.00mm)
Number of Terminations	2
Standard Package	500
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0090
Win Source Part Number	1337578-VR68000001503JAC00
Ultra Librarian 3D Model	Ultra Librarian VR68000001503JAC00 CAD Model

Alternative Products

Description

The VR68000001503JAC00 is a through-hole resistor from the VR68 series manufactured by Vishay Beyschlag/Draloric/BC Components.

Manufacturer: Vishay Beyschlag/Draloric/BC Components
Product: VR68000001503JAC00
Series: VR68
Type: Metal Film
Power Rating: 1W
Resistance: 150 kOhms
Tolerance: ±5%
Temperature Coefficient: ±200ppm/°C
Package: Axial
Terminations: 2
Operating Temperature: -55°C to 155°C
Voltage and Pulse Withstanding: High Voltage and Pulse Withstanding
