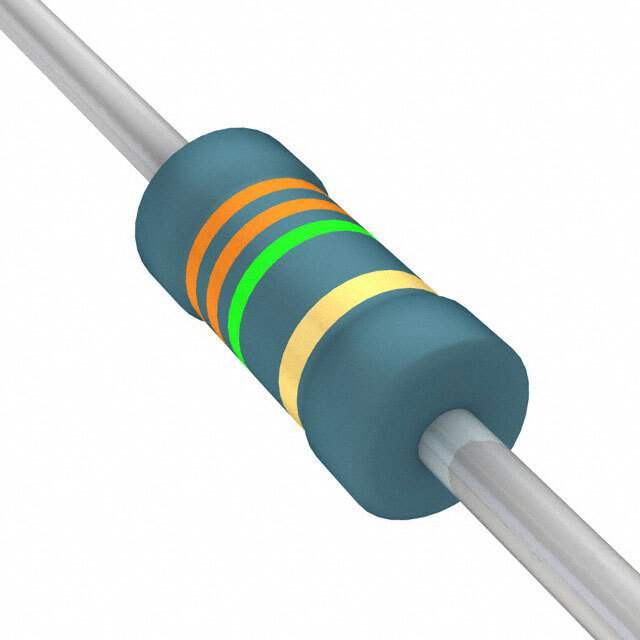

Same model may have multiple batches, images only for reference.

VR68000001004JAC00

Name: VR68000001004JAC00
Brand: Vishay
SKU: WS1307050
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	VR68000001004JAC00
Manufacturer	Vishay
Catalog	Through Hole Resistors
Description	RES 1M OHM 1W 5% AXIAL
Datasheet	VR68000001004JAC00 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1307050-VR68000001004JAC00
Manufacturer	Vishay
Category	Resistors-Through Hole Resistors
Packaging	Cut Tape (CT) Tape & Box (TB)
Part Status	Active
Resistance (Ohms)	1 MOhms
Tolerance (+ or -)	±5%
Power (Watts)	1W
Composition	Metal Film
Temperature Coefficient	±200ppm/°C
Operating Temperature	-55°C ~ 155°C
Ultra Librarian 3D Model	Ultra Librarian VR68000001004JAC00 CAD Model

Description

A metal glazed film is deposited on a high grade ceramic body. After a helical groove has been cut in the resistive layer, tinned electrolytic copper wires are welded to the end-caps. The resistors are coated with a light blue lacquer which provides electrical, mechanical, and climatic protection. This coating is not resistant to aggressive fluxes and cleaning solvents. The encapsulation is resistant to all cleaning solvents in accordance with IEC 60068-2-45.
