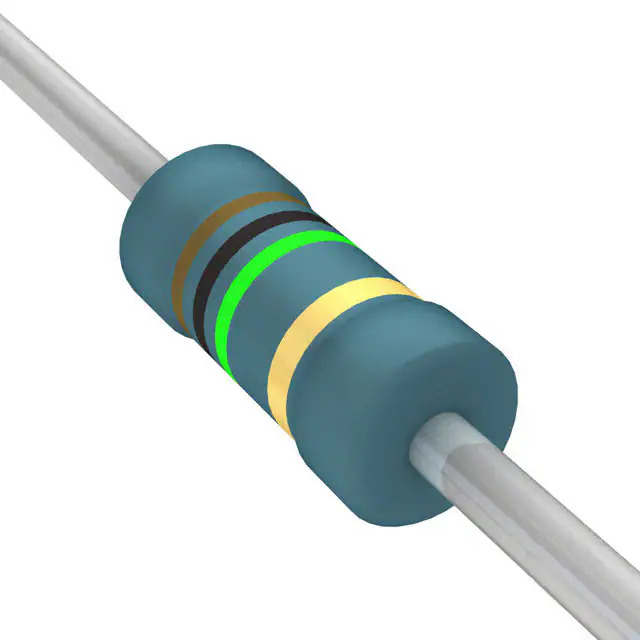

Same model may have multiple batches, images only for reference.
VR37000001004JA100 Vishay
Same model may have multiple batches, images only for reference.

VR37000001004JA100

Part No VR37000001004JA100
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 1M OHM 5% 1/2W AXIAL
Datasheet
VR37000001004JA100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Through Hole Resistors
Mfr Vishay Beyschlag/Draloric/BC Components
Series VR37
Product Status Active
Resistance 1 MOhms
Tolerance ±5%
Power (Watts) 0.5W, 1/2W
Composition Metal Film
Features Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Size / Dimension 0.157" Dia x 0.354" L (4.00mm x 9.00mm)
Height - Seated (Max) -
Number of Terminations 2
Failure Rate -
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Win Source Part Number 1374776-VR37000001004JA100
Ultra Librarian 3D Model Ultra Librarian VR37000001004JA100 CAD Model

Description

The VR37000001004JA100 is a through-hole resistor from Vishay Beyschlag/Draloric/BC Components.

  • Series: VR37
  • Features: Automotive AEC-Q200, Pulse Withstand
  • Resistance: 1 MOhms
  • Power Rating: 0.5W (1/2W)
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Operating Temperature: -55°C to 155°C
  • Package / Case: Axial
  • Size: 0.157" Dia x 0.354" L (4.00mm x 9.00mm)
  • Mounting Type: Through Hole
