Same model may have multiple batches, images only for reference.

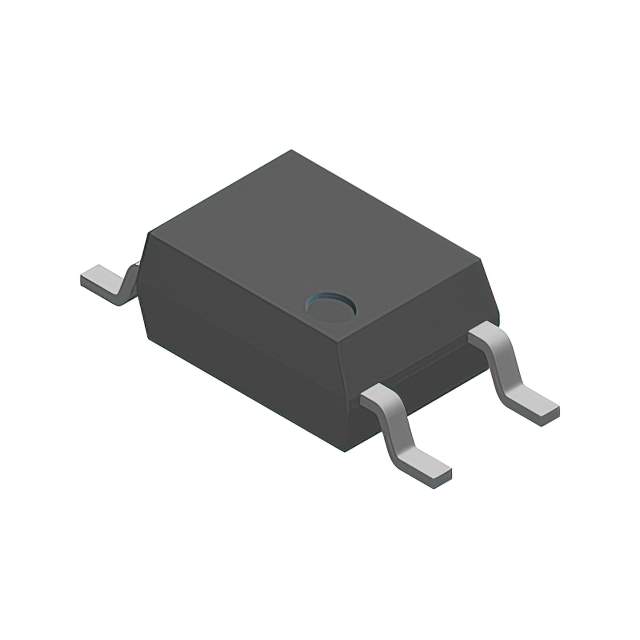

VOMA617A-3X001T Real Image
Same model may have multiple batches, images only for reference.

VOMA617A-3X001T

Part No VOMA617A-3X001T
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description SINGLE CHANNEL, 80V, SOP-4 PHOTO / Optoisolator Transistor Output 3750Vrms 1 Channel 4-SOP
Datasheet
VOMA617A-3X001T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Transistor, Photovoltaic Output
Manufacturer Vishay Semiconductor Opto Division
Packaging Reel - TR
Number of Channels 1
Voltage - Isolation 3750Vrms
Current Transfer Ratio (Min) 100% @ 5mA
Current Transfer Ratio (Max) 200% @ 5mA
Turn On / Turn Off Time (Typ) 4.9µs, 3.3µs
Rise / Fall Time (Typ) 2.3µs, 3.2µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 80V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.33V
Current - DC Forward (If) (Max) 20 mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -40°C ~ 110°C
Mounting Surface Mount
Case / Package 4-SMD, Gull Wing
Supplier Device Package 4-SOP
Base Product Number VOMA617
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8541.49.8000
Other Part Number VOMA617A-3X001TDKR,VOMA617A-3X001TTR,VOMA617A-3X001T-ND,VOMA617A-3X001TCT
Standard Package 2,000
Win Source Part Number 1331923-VOMA617A-3X001T
Ultra Librarian 3D Model Ultra Librarian VOMA617A-3X001T CAD Model

Description

The Vishay Semiconductor Opto Division electronic component with Win Source Part Number 1331923-VOMA617A-3X001T is a standard package of 2,000 isolators>optoisolators - transistor, photovoltaic output.

  • Manufacturer: Vishay Semiconductor Opto Division
  • Win Source Part Number: 1331923-VOMA617A-3X001T
  • Packaging: Reel - TR
  • Mounting Style: Surface Mount
  • Output Type: Transistor
  • Input Type: DC
  • Current - DC Forward (If) (Max): 20 mA
  • Voltage - Forward (Vf) (Typ): 1.33V
  • Rise/Fall Time (Typ): 2.3μs, 3.2μs
  • Current - Output/Channel: 50mA
  • Number of Channels: 1
  • Voltage - Isolation: 3750Vrms
  • Current Transfer Ratio (Min): 100% @ 5mA
  • Voltage - Output (Max): 80V
  • Vce Saturation (Max): 400mV
  • Current Transfer Ratio (Max): 200% @ 5mA
  • Turn On/Turn Off Time (Typ): 4.9μs, 3.3μs
  • Temperature Range - Operating: -40°C ~ 110°C
  • ECCN: EAR99
  • HTSUS: 8541.49.8000
  • Other Part Numbers: VOMA617A-3X001TDKR,VOMA617A-3X001TTR,VOMA617A-3X001T-ND,VOMA617A-3X001TCT
  • ROHS3 Compliant: Yes
