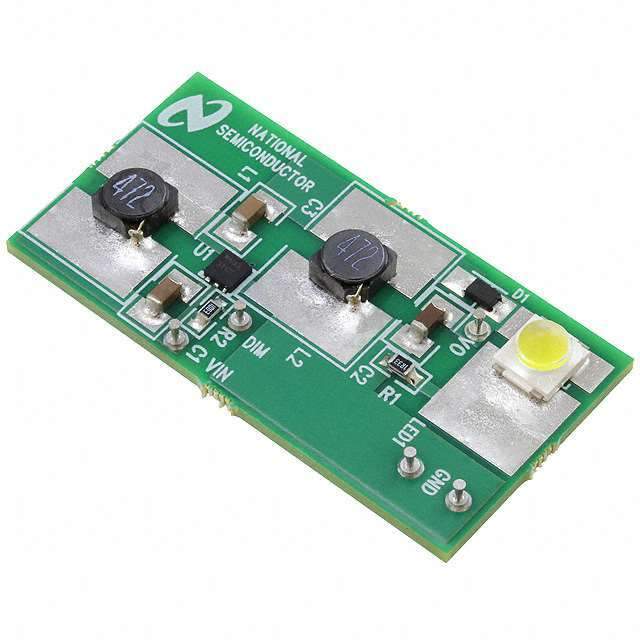

LM3410XSDSEPEV/NOPB

Part No LM3410XSDSEPEV/NOPB
Manufacturer Texas Instruments
Catalog Board Mount LED Drivers
Description EVAL BOARD FOR LM3410XSDSE / LM3410XSD LED Driver Evaluation Board
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Texas Instruments
Outputs and Type 1, Non-Isolated
Voltage - Output 3 V ~ 24 V
Features Thermal Shutdown Protection
Voltage - Input 2.7 V ~ 5.5 V
Supplied Contents Board(s)
Utilized IC / Part LM3410
Win Source Part Number 778941-LM3410XSDSEPEV/NOPB
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1
Family Name LM3410
Introduction Date January 01, 2000
ECCN EAR99
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian LM3410XSDSEPEV/NOPB CAD Model

Description

Product Overview: LM3410XSDSEPEV/NOPB

The LM3410XSDSEPEV/NOPB is a high-performance, constant current LED driver designed and manufactured by Texas Instruments (TI). This product is specifically engineered to deliver a stable and efficient power supply for driving high-brightness LEDs. With its compact size and robust feature set, the LM3410XSDSEPEV/NOPB is an ideal solution for a wide range of lighting applications including automotive, industrial, and general illumination.

Key Features

  • Efficient Power Conversion: The device offers a high efficiency of up to 90%, which helps in reducing heat generation and improving the overall lifespan of the LED system.
  • Adjustable Output Current: It provides an externally adjustable output current that allows users to fine-tune the brightness of the LED according to their specific requirements.
  • Wide Input Voltage Range: The LM3410XSDSEPEV/NOPB operates over a broad input voltage range, making it versatile for use in various applications with different power supply conditions.
  • Pulse Width Modulation (PWM) Dimming: It supports PWM dimming, which offers precise control over the LED brightness while maintaining color stability.
  • Thermal Shutdown Protection: The device includes thermal shutdown protection to prevent overheating, ensuring reliability and safety in operation.
  • Small Footprint: The LED driver comes in a small package, making it suitable for space-constrained applications.

Applications

The LM3410XSDSEPEV/NOPB is versatile and can be utilized in a variety of lighting solutions. Its main applications include:

  • Automotive interior and exterior lighting
  • Portable and battery-powered lighting
  • Display backlighting
  • General illumination for commercial and residential spaces

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the LM3410XSDSEPEV/NOPB is no exception. The product is designed to meet the stringent requirements of the industry, ensuring high reliability for critical applications. With its enhanced performance features and TI's reputation for quality, the LM3410XSDSEPEV/NOPB is a top choice for designers looking to create efficient and reliable LED lighting systems.
