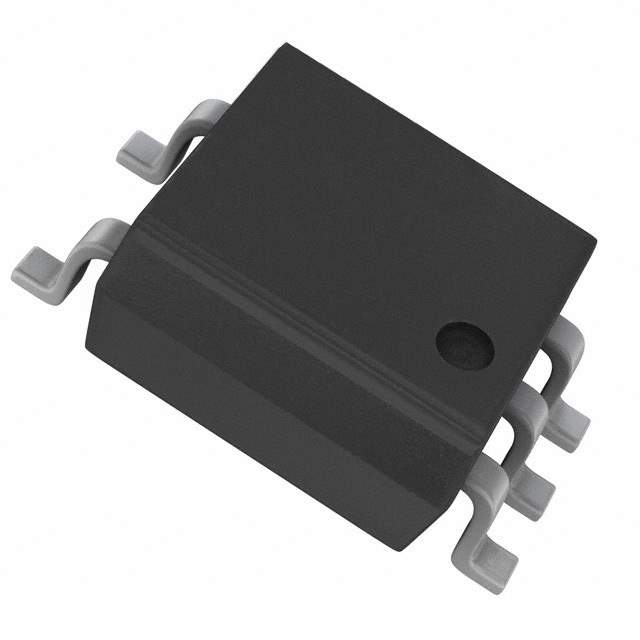

VOM452T Real Image
Same model may have multiple batches, images only for reference.

VOM452T

Part No VOM452T
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 3.75KV TRANS 5-SOP
Datasheet
VOM452T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 20% @ 16mA
Maximum DC Current Transfer Ratio 50% @ 16mA
Switching Turn-On and Turn-Off Time 200ns, 500ns
Input Type DC
Output Type Transistor
Maximum Output Voltage 25V
Channel Output Current 8mA
Forward Voltage 1.4V
Continuous forward current- Max 25mA
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 5-SOP
Win Source Part Number 1117558-VOM452T
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Communications & Networking, Signal Processing, Industrial
Ultra Librarian 3D Model Ultra Librarian VOM452T CAD Model

Description

Vishay's electronic component VOM452T is an isolator with a DC input type and a maximum output voltage of 25V.

  • Input Type: DC
  • Minimum DC Current Transfer Ratio: 20 percent @ 16mA
  • Maximum DC Current Transfer Ratio: 50 percent @ 16mA
  • Package: 5-SOP
  • Isolation Voltage: 3750Vrms
  • Recommended Applications: Communications and Networking, Signal Processing, and Industrial applications
