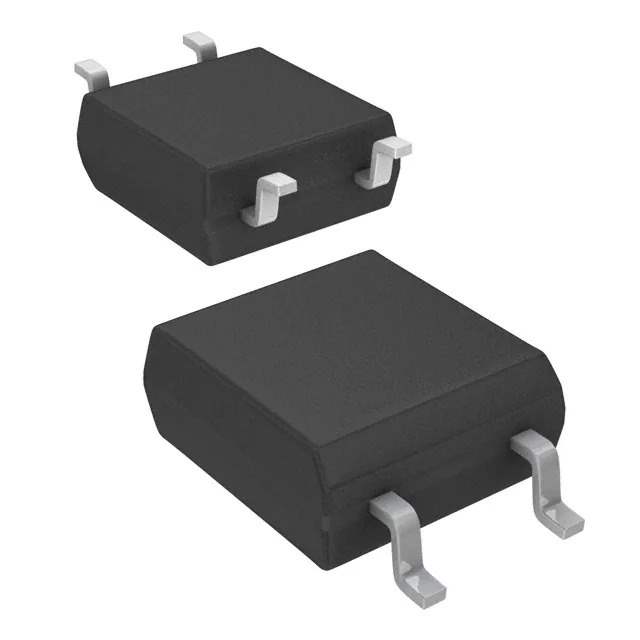

VOM3052-X001T Real Image
Same model may have multiple batches, images only for reference.

VOM3052-X001T

Part No VOM3052-X001T
Manufacturer Vishay
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 3.75KV TRIAC 4SOP / Optoisolator Triac Output 3750Vrms 1 Channel 4-SOP
Datasheet
VOM3052-X001T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Triac, SCR Output Optoisolators
Mfr Vishay
Package Tape & Reel
Product Status Active
Output Type Triac
Zero Crossing Circuit No
Number of Channels 1
Voltage - Isolation 3750Vrms
Voltage - Off State 600 V
Static dV/dt (Min) 1.5kV/µs
Current - LED Trigger (Ift) (Max) 10mA
Current - On State (It (RMS)) (Max) 70 mA
Current - Hold (Ih) 300µA (Typ)
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Max) 60 mA
Temperature Range - Operating -40°C ~ 100°C
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package 4-SOP
Approval Agency CQC, cUR, UR, VDE
Base Product Number VOM3052
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 902798-VOM3052-X001T
Ultra Librarian 3D Model Ultra Librarian VOM3052-X001T CAD Model

Description

The VOM3052-X001T is an optoisolator with a triac output.

  • Application: electrical isolation between input and output circuits
  • Forward Current (If): 60mA
  • Forward Voltage (Vf): 1.2V
  • Off-State Voltage: 600V
  • On-State Current (It (RMS)): 70mA
  • Channel(s): Single
  • Voltage Isolation: 3750Vrms
  • Zero Crossing Circuit: No
  • Static dV/dt: 1.5kV/µs
  • Mounting Type: Surface Mountable
  • Package: 4-SMD, gull wing
  • Temperature Range: -40°C to 100°C
  • Approvals: CQC, cUR, UR, and VDE
  • Status: Active
  • Manufacturer: Vishay
