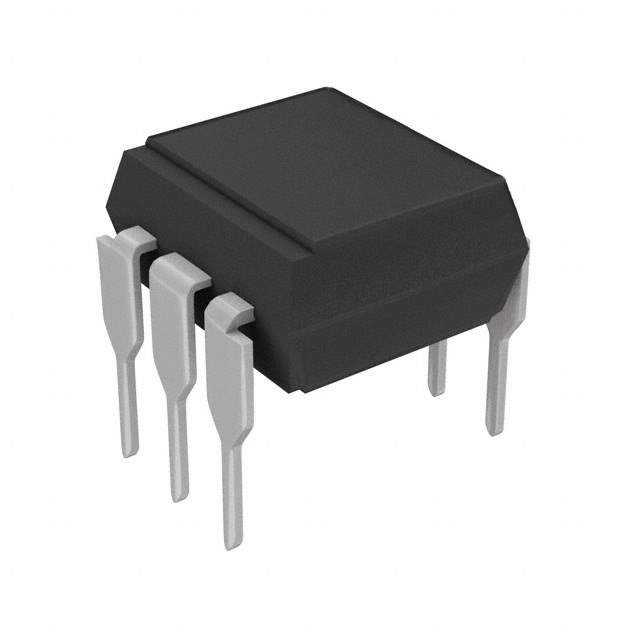

VO4156D Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay Semiconductor Opto Division
Packaging Tube
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Voltage - Isolation 5300Vrms
Voltage - Off State 600V
Static dV/dt (Minimum) 5kV/μs
Current - LED Trigger (Ift) (Maximum) 1.6mA
Current - On State (It (RMS)) (Maximum) 300mA
Current - Hold (Ih) 500μA
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Maximum) 60mA
Operating Temperature Range -55°C ~ 100°C
Mounting Style Through Hole
Package 6-DIP (0.300", 7.62mm)
Manufacturer Package 6-DIP
Approvals cUR, UR
Win Source Part Number 1279693-VO4156D
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Family Name VO4156
Introduction Date March 09, 2006
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian VO4156D CAD Model

Description

The Vishay Semiconductor Opto Division VO4156D is a triac output type isolator with a voltage rating of 600V and a voltage isolation of 5300Vrms.

  • Voltage Rating: 600V
  • Voltage Isolation: 5300Vrms
  • Current Hold: 500μA
  • Package: 6-DIP
  • Zero Crossing Circuit: Yes
  • Mounting Technology: Through hole
  • Category: Isolators
  • Status: Active
  • Temperature Range: -55°C to 100°C
  • Estimated EOL Date: 2024
  • Introduction Date: March 09, 2006
  • ECCN: EAR99
