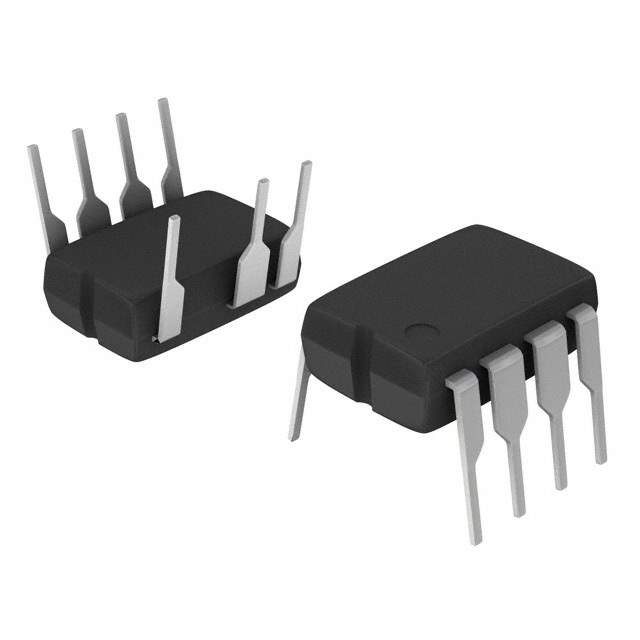

VO3120-X001

Part No VO3120-X001
Manufacturer Vishay
Catalog Isolators - Gate Drivers
Description OPTOISO 5.3KV GATE DRIVER 8DIP
Datasheet
VO3120-X001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Technology Optical Coupling
Number of Channels 1
Isolation Voltage 5300Vrms
Common Mode Transient Immunity (Min) 25kV/μs
Propagation Delay tpLH / tpHL (Max) 400ns, 400ns
Pulse Width Distortion (Max) 200ns
Rise and Fall Time 100ns, 100ns
Current - Output High, Low 2.5A, 2.5A
Current - Peak Output 2.5A
Forward Voltage 1.6V (Max)
Continuous forward current- Max 25mA
Supply Voltage - Operating 15 V to 32 V
Temperature Range - Operating -40°C to 110°C
Mounting Through Hole
Case / Package 8-DIP
Approvals cUR, UR, VDE
Win Source Part Number 057311-VO3120-X001
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VO3120-X001 CAD Model

Description

The Vishay VO3120-X001 is an optical coupling isolator with a through-hole mounting technology.

  • Mounting Technology: Through-Hole
  • Maximum Forward Voltage: 1.6V
  • Common Mode Transient Immunity: 25kV/μs
  • Isolation Voltage: 5300Vrms
  • Pulse Width Distortion: 200ns
  • Propagation Delay (Max): 400ns
  • Continuous Forward Current: 25mA
  • Supply and Demand Status: Limited
