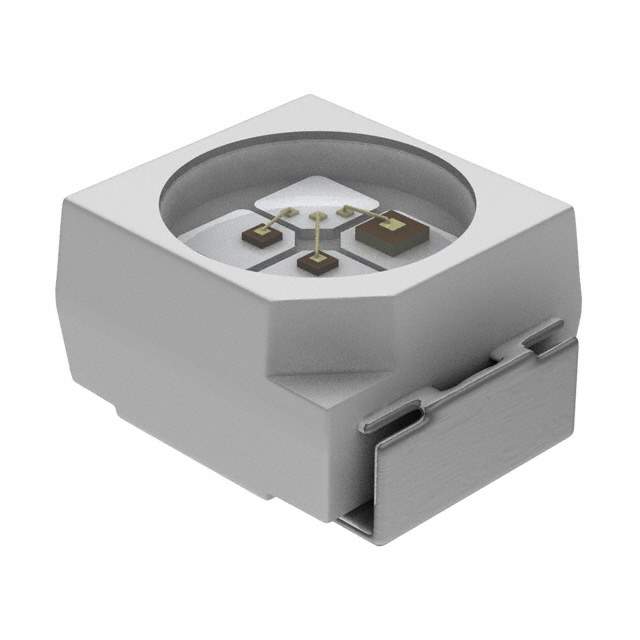

VLMS3100-GS08 Real Image
Same model may have multiple batches, images only for reference.

VLMS3100-GS08

Part No VLMS3100-GS08
Manufacturer Vishay
Catalog LED Indication - Discrete
Description LED RED CLEAR 2PLCC SMD / Red 630nm LED Indication - Discrete 2V 2-SMD, J-Lead
Datasheet
VLMS3100-GS08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Vishay Semiconductor Opto Division
Series VLM.3
Package Tape & Reel
Color Red
Configuration Standard
Lens Transparency Clear
Millicandela Rating 7.1mcd
Lens Style Round with Flat Top
Lens Size 2.40mm Dia
Voltage - Forward (Vf) (Typ) 2V
Current - Test 10mA
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Dominant 630nm
Wavelength - Peak 640nm
Package / Case 2-SMD, J-Lead
Supplier Device Package 2-PLCC
Dimension 3.00mm L x 2.80mm W
Height (Max) 1.85mm
Base Product Number VLMS3100
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 751-1472-1,751-1472-2,751-1472-6,VLMS3100GS08
Standard Package 1,500
Win Source Part Number 1001928-VLMS3100-GS08
Ultra Librarian 3D Model Ultra Librarian VLMS3100-GS08 CAD Model

Description

The VLM.3 series LED indication is designed for use in automotive applications.

  • Color: Red
  • Viewing Angle: 120°
  • Millicandela Rating: 7.1mcd
  • Voltage - Forward (Vf) (Typ): 2V @ 10mA
  • Test Current: 10mA
  • Wavelength - Dominant: 630nm
  • Wavelength - Peak: 640nm
  • Package / Case: 2-SMD, J-Lead
  • Size / Dimension: 3.00mm L x 2.80mm W
  • Height - Seated (Max): 1.85mm
  • Lens Style: Round with Flat Top
  • Packaging: Tape & Reel (TR)
  • Standard Package: 1,500
  • Lead Free Status: Lead Free
  • RoHS Status: RoHS Compliant
