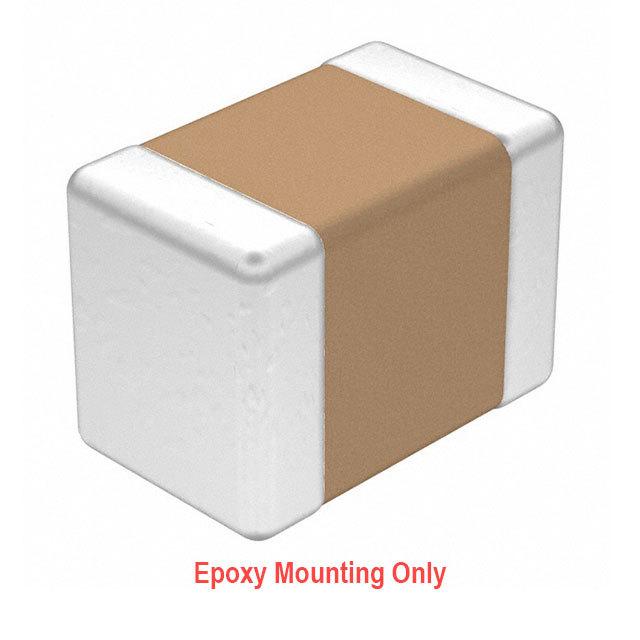

The VJ1210U105MXXAT is a multi-layer ceramic capacitor (MLCC) manufactured by Vishay. It is designed for surface mount applications, offering a compact size with stable performance. This capacitor is part of the VJ series and designed to provide high capacitance values in a small form factor.

Applications

• Bypass and decoupling in digital and analog circuits
• Filtering in power supplies
• Energy storage in portable devices
• Smoothing circuits
• General purpose applications requiring high capacitance

Features

• Surface Mount Device (SMD)
• Case Size: 1210 (3.2mm x 2.5mm)
• Capacitance: 1.0 µF
• Voltage Rating: 25V
• Dielectric: X5R
• Tolerance: ±20%
• Operating Temperature Range: -55°C to +85°C
• High capacitance value for its size
• RoHS compliant

Benefits

• High capacitance in a compact size allows for dense circuit designs.
• Effective bypass and decoupling due to high capacitance.
• Suitable for portable devices and applications with limited space.
• Reduces noise and voltage ripple in power supplies.

Additional Details

The X5R dielectric provides a good balance of capacitance stability and volumetric efficiency. While not as stable as C0G/NP0, it offers a higher capacitance value for a given size and voltage rating. The 1210 case size is a standard SMD package, facilitating ease of assembly. The VJ1210U105MXXAT capacitor is commonly used in applications such as smartphones, tablets, and other portable devices where a high capacitance value is needed in a small form factor.

The capacitor's construction consists of multiple layers of ceramic material and metal electrodes, resulting in a high capacitance to volume ratio. The reflow soldering profile aligns with industry standards, ensuring ease of integration into standard assembly processes.
