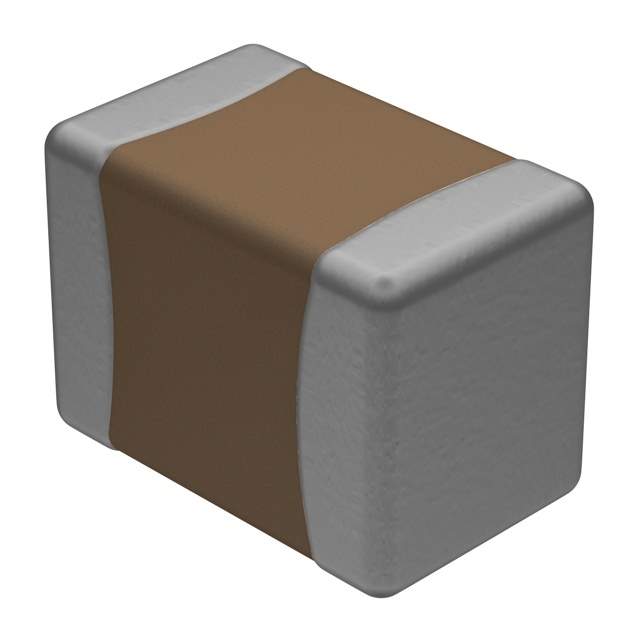

VJ0805A101JXRAT5Z Real Image
Same model may have multiple batches, images only for reference.

VJ0805A101JXRAT5Z

Part No VJ0805A101JXRAT5Z
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 100PF 1.5KV NP0 0805 / 100 pF ±5% 1500V (1.5kV) Ceramic Capacitor C0G, NP0 0805 (2012 Metric)
Datasheet
VJ0805A101JXRAT5Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Manufacturer Vishay Vitramon
Packaging Reel - TR
Capacitance 100 pF
Tolerance ±5%
Voltage - Rated 1500V (1.5kV)
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Features High Voltage
Applications General Purpose
Mounting Surface Mount, MLCC
Case / Package 0805 (2012 Metric)
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Thickness (Max) 0.057" (1.45mm)
Base Product Number VJ0805
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.24.0020
Standard Package 3,000
Win Source Part Number 1330701-VJ0805A101JXRAT5Z
Ultra Librarian 3D Model Ultra Librarian VJ0805A101JXRAT5Z CAD Model

Description

The VJ0805A101JXRAT5Z is a ceramic capacitor from Vishay Vitramon that is designed for use in general purpose applications.

  • Manufacturer: Vishay Vitramon
  • Product: VJ0805A101JXRAT5Z
  • Application: General Purpose
  • Package: 0805 (2012 Metric)
  • Packaging: Reel - TR
  • Capacitance: 100 pF
  • Voltage Rated: 1500V (1.5kV)
  • Tolerance: ±5%
  • Temperature Coefficient: C0G, NP0
  • Thickness: 0.057" (1.45mm)
  • Operating Temperature: -55°C ~ 125°C
