Same model may have multiple batches, images only for reference.

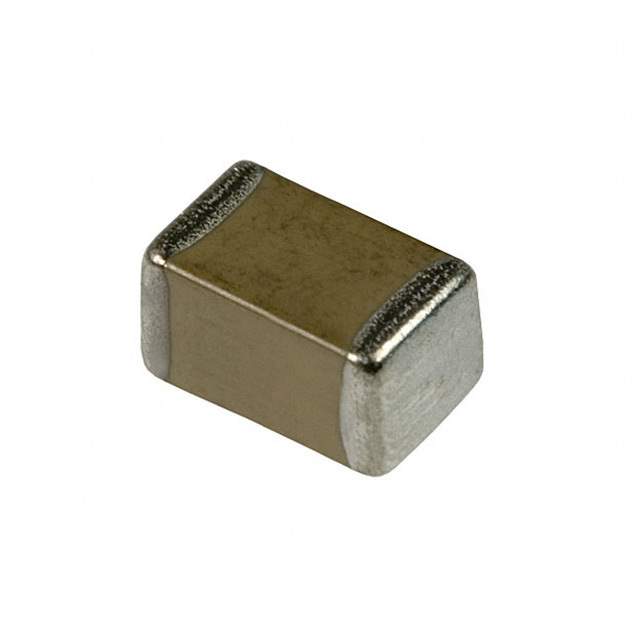

VJ0402A120JXACW1BC Real Image
Same model may have multiple batches, images only for reference.

VJ0402A120JXACW1BC

Part No VJ0402A120JXACW1BC
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 12PF 50V C0G/NP0 0402
Datasheet
VJ0402A120JXACW1BC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Vishay
Packaging Reel - TR
Status Active
Capacitance 12pF
Tolerance ±5%
Voltage Rating 50V
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C to 125°C
Applications General Purpose
Mounting Surface Mount, MLCC
Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Thickness (Max) 0.022" (0.55mm)
Win Source Part Number 1000071-VJ0402A120JXACW1BC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VJ0402A120JXACW1BC CAD Model

Description

The Vishay VJ0402A120JXACW1BC is a general-purpose capacitor designed for surface mount, MLCC mounting.

  • Mounting: Surface Mount, MLCC
  • Voltage Rating: 50V
  • Capacitance: 12pF
  • Tolerance: ±5%
  • Temperature Coefficient: C0G, NP0
  • Thickness (Max): 0.022" (0.55mm)
  • Packaging: Reel-TR
  • Popularity: Medium
  • Operating Temperature: -55°C to 125°C
  • Dimension: 0.039" L x 0.020" W (1.00mm x 0.50mm)
