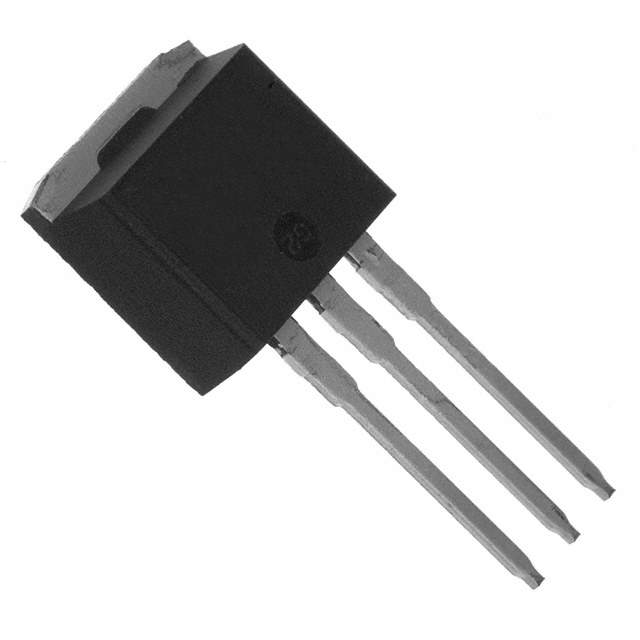

VI30120C-E3/4W Real Image
Same model may have multiple batches, images only for reference.

VI30120C-E3/4W

Part No VI30120C-E3/4W
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description Dual High-Voltage Trench MOS Barrier Schottky Rectifier Ultra Low VF = 0.50 V at IF = 5 A
Datasheet
VI30120C-E3/4W Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Series TMBS
Packaging Tube
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 120V
Current - Average Rectified (Io) (per Diode) 15A
Voltage - Forward (Vf) (Maximum) @ If 970mV @ 15A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 800μA @ 120V
Operating Temperature - Junction -40°C ~ 150°C
Mounting Style Through Hole
Package TO-262-3 Long Leads, I2Pak, TO-262AA
Manufacturer Package TO-262AA
Win Source Part Number 1279259-VI30120C-E3/4W
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Family Name VI30120C
Introduction Date September 05, 2007
ECCN EAR99
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian VI30120C-E3/4W CAD Model

Description

The VI30120C-E3/4W is a fast recovery Schottky diode manufactured by Vishay Semiconductor Diodes Division.

  • Series: TMBS
  • Package: TO-262-3 Long Leads, I2Pak, TO-262AA
  • Diode Configuration: 1 pair common cathode
  • Current Rating: 15A
  • Maximum DC Reverse Voltage: 120V
  • Maximum Forward Voltage: 970mV @ 15A
  • Operating Temperature Range: -40°C to 150°C
  • Ideal for: use in various applications such as power supplies, inverters, and motor control.
