Same model may have multiple batches, images only for reference.

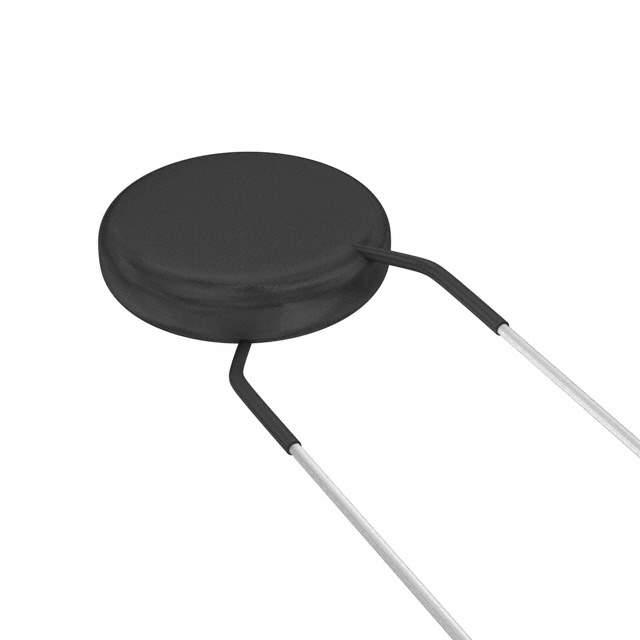

VDRS14T275BSE Real Image
Same model may have multiple batches, images only for reference.

VDRS14T275BSE

Part No VDRS14T275BSE
Manufacturer Vishay
Catalog TVS - Varistors, MOVs
Description VARISTOR 430V 4.5KA DISC 16MM  /  430 V 4.5 kA Varistor 1 Circuit Through Hole Disc 16mm
Datasheet
VDRS14T275BSE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Mfr Vishay Beyschlag/Draloric/BC Components
Series VDRS
Package Bulk
Maximum AC Volts 275 V
Maximum DC Volts 350 V
Varistor Voltage (Min) 387 V
Varistor Voltage (Typ) 430 V
Varistor Voltage (Max) 473 V
Current - Surge 4.5 kA
Energy 104J
Number of Circuits 1
Capacitance @ Frequency 440 pF @ 1 kHz
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Through Hole
Package / Case Disc 16mm
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000
Other Names 232259552716,BC1454,238159552716INACTIVE,2381 595 52716-ND,238159552716,BC1454-NDR,2381 595 52716,2322 595 52716,VDRS14T275BSC,2381 595 52716INACTIVE-ND
Standard Package 100
Win Source Part Number 1151395-VDRS14T275BSE
Ultra Librarian 3D Model Ultra Librarian VDRS14T275BSE CAD Model

Description

The VDRS14T275BSE is a TVS - Varistors, MOVs circuit protection device that is designed to protect electronic devices from overvoltage conditions.

  • Series: VDRS
  • Package: Bulk
  • Varistor Voltage: 387 V to 473 V
  • Capacitance: 440 pF @ 1 kHz
  • Maximum AC Volts: 275 V
  • Maximum DC Volts: 350 V
  • Surge Current: 4.5 kA
  • Energy Rating: 104J
  • Operating Temperature: -40°C to 85°C (TA)
  • Mounting: Through Hole
  • Manufacturer: Vishay Beyschlag/Draloric/BC Components
  • Alternative to: VDRS14T275BSC
