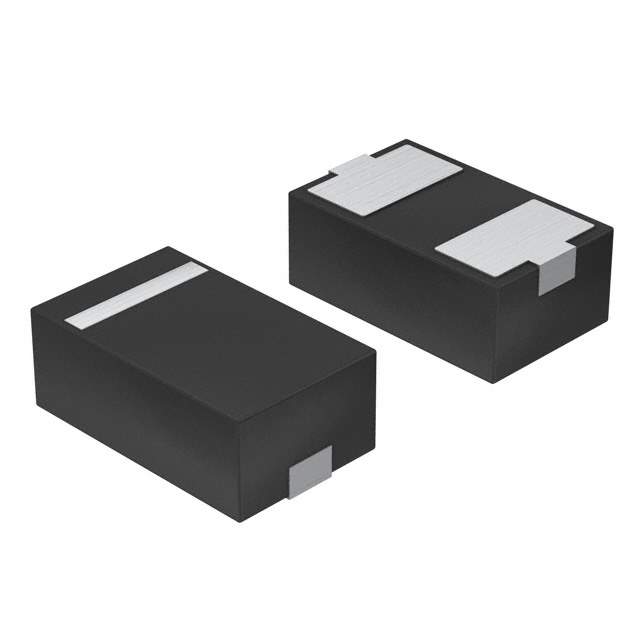

VCUT0714A-HD1-GS08 Real Image
Same model may have multiple batches, images only for reference.

VCUT0714A-HD1-GS08

Part No VCUT0714A-HD1-GS08
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 7VWM/14VWM LLP10062L
Datasheet
VCUT0714A-HD1-GS08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 7V, 14V
Minimum Breakdown Voltage 7.3V, 14.5V
Max Clamping Voltage 17V, 30V
Peak Pulse Current(Ippm) 5A, 2A (8/20μs)
Power Dissipation - Pd 54W, 63W
Applications General Purpose
Capacitance @ Frequency 8pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package LLP1006-2L
Win Source Part Number 036240-VCUT0714A-HD1-GS08
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian VCUT0714A-HD1-GS08 CAD Model

Description

The VCUT0714A-HD1-GS08 is a Zener type electronic component manufactured by Vishay.

  • GPTDescription: It has a capacitance of 8pF @ 1MHz and is suitable for general purpose applications.
  • GPTDescription: This component has a stand-off voltage of 7V and 14V, and a minimum breakdown voltage of 7.3V and 14.5V.
  • GPTDescription: It has a maximum clamping voltage of 17V and 30V, and a peak pulse current of 5A and 2A (8/20μs).
  • GPTDescription: The VCUT0714A-HD1-GS08 has a power dissipation of 54W and 63W.
  • GPTDescription: This product is suitable for use in various circuit protection applications.
