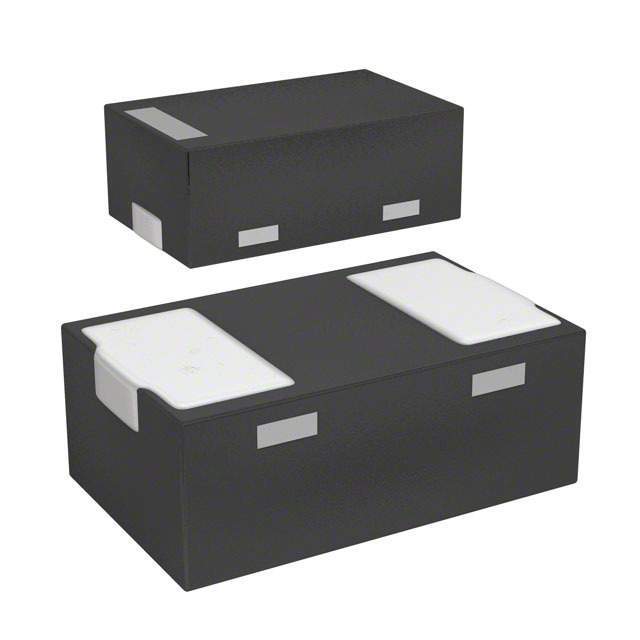

Same model may have multiple batches, images only for reference.
VBUS05L1-DD1-G-08 Vishay
Same model may have multiple batches, images only for reference.

VBUS05L1-DD1-G-08

Part No VBUS05L1-DD1-G-08
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 5.5VWM 17VC LLP1006
Datasheet
VBUS05L1-DD1-G-08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 5.5V (Max)
Minimum Breakdown Voltage 7V
Max Clamping Voltage 17V
Peak Pulse Current(Ippm) 2A (8/20μs)
Power Dissipation - Pd 34W
Applications General Purpose
Capacitance @ Frequency 0.33pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package LLP1006-2M
Win Source Part Number 107288-VBUS05L1-DD1-G-08
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian VBUS05L1-DD1-G-08 CAD Model

Description

The VBUS05L1-DD1-G-08 is a Zener diode from Vishay.

  • Channel: Bidirectional channel
  • Capacitance: 0.33pF @ 1MHz
  • Application: General-purpose applications
  • Mounting: Surface-mount technology
  • Popularity Rating: High
  • Supply and Demand Status: Sufficient
