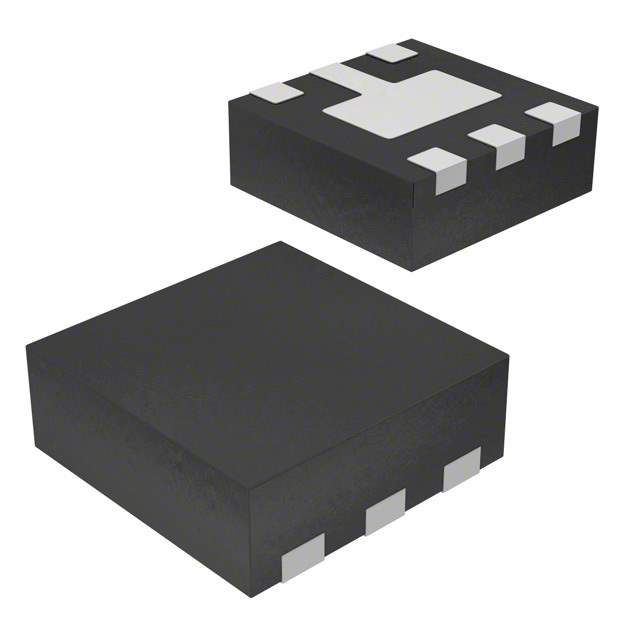

VBUS054CV-HS3-GS08 Real Image
Same model may have multiple batches, images only for reference.

VBUS054CV-HS3-GS08

Part No VBUS054CV-HS3-GS08
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 5VWM 22VC LLP75
Datasheet
VBUS054CV-HS3-GS08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging Reel - TR
Status Obsolete(EOL)
Type Steering (Rail to Rail)
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 5V (Min)
Minimum Breakdown Voltage 7V
Max Clamping Voltage 22V
Peak Pulse Current(Ippm) 11A (8/20μs)
Power Dissipation - Pd 242W
Power Line Protection Yes
Applications General Purpose
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package LLP75-6A
Win Source Part Number 057275-VBUS054CV-HS3-GS08
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VBUS054CV-HS3-GS08 CAD Model

Description

The Vishay 057275-VBUS054CV-HS3-GS08 is a steering diode with four unidirectional channels for power line protection.

  • Stand-off Voltage (Vwm): 5V (Min)
  • Minimum Breakdown Voltage: 7V
  • Maximum Clamping Voltage: 22V
  • Peak Pulse Current(Ippm): 11A (8/20μs)
  • Package: LLP75-6A
  • Suitable for: Circuit protection
  • Operating Temperature Range: -40°C to 125°C (TJ)
  • Packaging: Reel - TR
  • Supply and Demand Status: Limited
