Same model may have multiple batches, images only for reference.

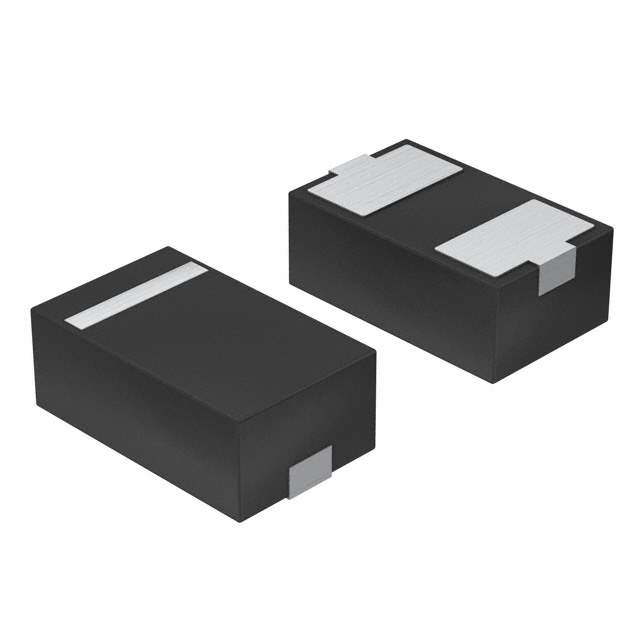

VBUS051CD-HD1-G-08 Real Image
Same model may have multiple batches, images only for reference.

VBUS051CD-HD1-G-08

Part No VBUS051CD-HD1-G-08
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 5.5VWM 14VC LLP1006-2L / 14V Clamp 2A (8/20µs) Ipp Tvs Diode Surface Mount LLP1006-2L
Datasheet
VBUS051CD-HD1-G-08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Vishay General Semiconductor - Diodes Division
Package Tape & Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5.5V (Max)
Voltage - Breakdown (Min) 6.5V
Voltage - Clamping (Max) @ Ipp 14V
Current - Peak Pulse (10/1000µs) 2A (8/20µs)
Power - Peak Pulse 28W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 0.6pF @ 1MHz
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case SOD-882
Supplier Device Package LLP1006-2L
Base Product Number VBUS051
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names VBUS051CD-HD1-G-08GIDKR,VBUS051CD-HD1-G-08-ND,VBUS051CD-HD1-G-08GITR,VBUS051CD-HD1-G-08GICT
Standard Package 8,000
Win Source Part Number 968225-VBUS051CD-HD1-G-08
Ultra Librarian 3D Model Ultra Librarian VBUS051CD-HD1-G-08 CAD Model

Description

The VBUS051CD-HD1-G-08 is a Zener diode from Vishay General Semiconductor - Diodes Division.

  • Manufacturer: Vishay General Semiconductor - Diodes Division
  • Product: VBUS051CD-HD1-G-08
  • Type: Zener Diode
  • Reverse Standoff Voltage: 5.5V
  • Breakdown Voltage: 6.5V
  • Power Peak Pulse: 28W
  • Capacitance: 0.6pF @ 1MHz
  • Channel: Unidirectional
  • Current Peak Pulse: 2A (8/20µs)
  • Package: SOD-882
  • Application: General Purpose
  • RoHS Compliant: Yes
  • REACH: Unaffected
