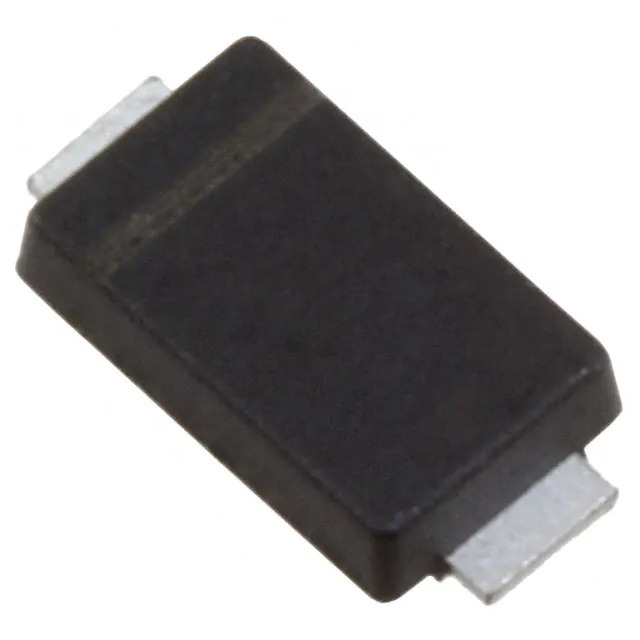

Same model may have multiple batches, images only for reference.
V8PAM10S-M3/H Vishay
Same model may have multiple batches, images only for reference.

V8PAM10S-M3/H

Part No V8PAM10S-M3/H
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 100V 2.8A DO221BC / Diode 100 V 2.8A Surface Mount DO-221BC (SMPA)
Datasheet
V8PAM10S-M3/H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Vishay General Semiconductor - Diodes Division
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 2.8A
Voltage - Forward (Vf) (Max) @ If 840 mV @ 8 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 180 µA @ 100 V
Capacitance @ Vr, F 600pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-221BC, SMA Flat Leads Exposed Pad
Supplier Device Package DO-221BC (SMPA)
Operating Temperature - Junction -40°C ~ 175°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1356226-V8PAM10S-M3/H
Ultra Librarian 3D Model Ultra Librarian V8PAM10S-M3/H CAD Model

Description

The V8PAM10S-M3/H is a rectifier diode from Vishay General Semiconductor - Diodes Division.

  • Mounting Type: Surface mount
  • Package: DO-221BC (SMPA)
  • Maximum Reverse Voltage: 100V
  • Average Rectified Current: 2.8A
  • Forward Voltage: 840mV @ 8A
  • Recovery Speed: Fast, less than 500ns
  • Reverse Recovery Current: 180µA @ 100V
  • Capacitance: 600pF @ 4V and 1MHz
  • REACH: Unaffected
  • ECCN: EAR99
