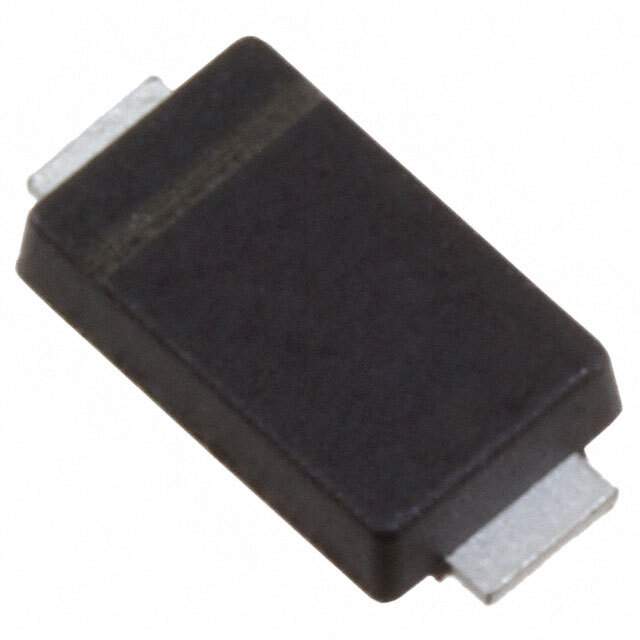

Same model may have multiple batches, images only for reference.

V8PAL45-M3/I

Name: V8PAL45-M3/I
Brand: Vishay
SKU: 1325816
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	V8PAL45-M3/I
Manufacturer	Vishay
Catalog	Diodes, Rectifiers - Single
Description	DIODE SCHOTTKY 45V 4A DO221BC / Diode Schottky 45 V 4A Surface Mount DO-221BC (SMPA)
Datasheet	V8PAL45-M3/I Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Rectifiers - Single
Manufacturer	Vishay General Semiconductor - Diodes Division
Packaging	Reel - TR
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	45 V
Current - Average Rectified (Io)	4A
Voltage - Forward (Vf) (Max) @ If	570 mV @ 8 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	1.85 mA @ 45 V
Mounting	Surface Mount
Case / Package	DO-221BC, SMA Flat Leads Exposed Pad
Supplier Device Package	DO-221BC (SMPA)
Operating Temperature - Junction	-40°C ~ 150°C
Base Product Number	V8PAL45
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Other Part Number	V8PAL45-M3/IGITR,V8PAL45-M3/IGICT,V8PAL45-M3/I-ND,V8PAL45-M3/IGIDKR
Standard Package	14,000
Win Source Part Number	1325816-V8PAL45-M3/I
Ultra Librarian 3D Model	Ultra Librarian V8PAL45-M3/I CAD Model

Description

The Vishay General Semiconductor - Diodes Division V8PAL45-M3/I Schottky diode is a fast recovery diode with a maximum reverse voltage of 45 V and an average rectified current of 4A.

Maximum Reverse Voltage: 45 V
Average Rectified Current: 4A
Forward Voltage: 570 mV @ 8 A
Reverse Leakage Current: 1.85 mA @ 45 V
Mounting: Surface Mount
Package: DO-221BC (SMPA)
Leads: SMA flat leads exposed pad
Operating Temperature: -40°C to 150°C
ROHS3 Compliant: Yes
REACH: Unaffected
