Same model may have multiple batches, images only for reference.

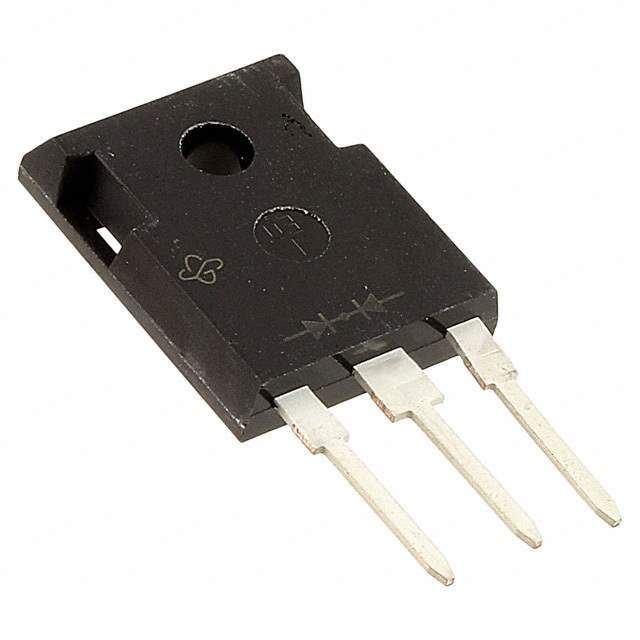

V40100PW-M3/4W Real Image
Same model may have multiple batches, images only for reference.

V40100PW-M3/4W

Part No V40100PW-M3/4W
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 100V TO3PW / Rectifier Diode Schottky 100V 40A 3-Pin(3+Tab) TO-3PW Tube
Datasheet
V40100PW-M3/4W Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Series TMBS
Packaging Tube
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 100V
Current - Average Rectified (Io) (per Diode) 20A
Voltage - Forward (Vf) (Maximum) @ If 770mV @ 20A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 1mA @ 100V
Operating Temperature - Junction -40°C ~ 150°C
Mounting Style Through Hole
Package TO-3P-3 Full Pack
Manufacturer Package TO-3PW
Win Source Part Number 798989-V40100PW-M3/4W
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Family Name V40100PW
Introduction Date April 28, 2010
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian V40100PW-M3/4W CAD Model

Description

The Vishay Semiconductor Diodes Division V40100PW-M3/4W is a Schottky diode manufactured by Vishay Semiconductor Diodes Division.

  • Package: TO-3P-3 full pack
  • Maximum Voltage Forward: 770mV @ 20A
  • Maximum Voltage Reverse: 100V
  • Current Average Rectified (Io) (per Diode): 20A
  • Diode Configuration: 1 pair common cathode
