Same model may have multiple batches, images only for reference.

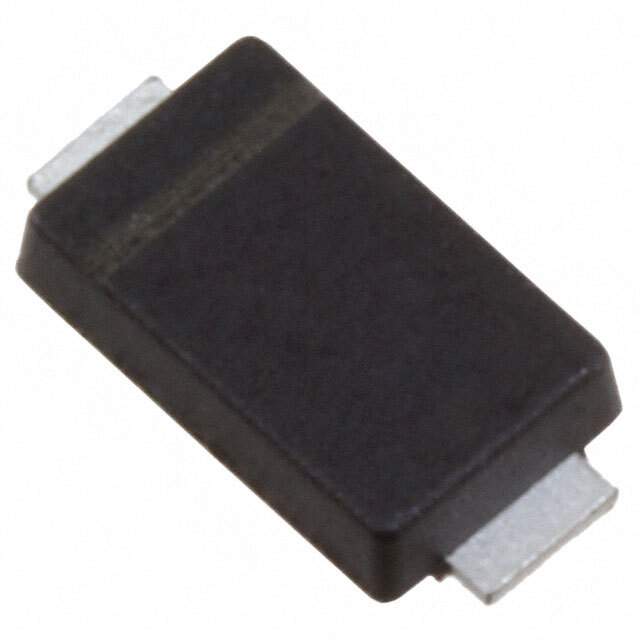

V3PAL45HM3_A/I Real Image
Same model may have multiple batches, images only for reference.

V3PAL45HM3_A/I

Part No V3PAL45HM3_A/I
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 45V 3A SMPA
Datasheet
V3PAL45HM3_A/I Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 51 Weeks
Features Diode Schottky 45 V 3A Surface Mount DO-221BC (SMPA)
Manufacturer Vishay
Series Automotive, AEC-Q101, TMBS®
Package Reel - TR
Speed Fast Recovery =< 500ns, > 200mA (Io)
Mounting Surface Mount
Package DO-221BC, SMA Flat Leads Exposed Pad
Case / Package DO-221BC (SMPA)
Family Name V3PAL45
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number V3PAL45HM3_A/IGITR, V3PAL45HM3_A/IGICT, V3PAL45HM3_A/I-ND, V3PAL45HM3_A/IGIDKR
Quantity per package 14000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 902453-V3PAL45HM3_A/I
Ultra Librarian 3D Model Ultra Librarian V3PAL45HM3_A/I CAD Model

Description

The V3PAL45 diode from Vishay is a Schottky diode with a 45V reverse voltage rating and a 3A forward current rating.

  • Application: Automotive
  • Standard: Meets AEC-Q101 standards
  • Recovery Time: Less than 500ns
  • Forward Current: Greater than 200mA
  • Package: DO-221BC (SMPA) with SMA flat leads exposed pad
  • Quantity: Reels of 14000
  • Estimated Production Lead Time: 51 weeks
  • Demand: High, balanced supply
