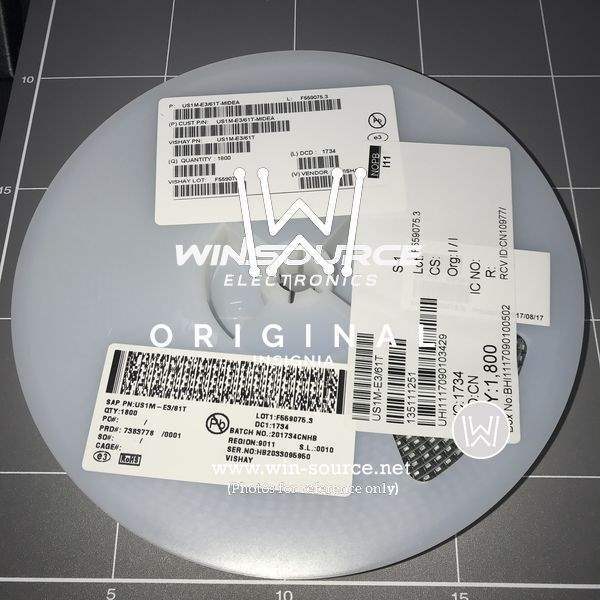

US1M-E3/61T Vishay US1M-E3/61T real image US1M-E3/61T label picture US1M-E3/61T label picture 2 US1M-E3/61T real image 2
Same model may have multiple batches, images only for reference.
US1M-E3/61T Vishay US1M-E3/61T real image US1M-E3/61T label picture US1M-E3/61T label picture 2 US1M-E3/61T real image 2
US1M-E3/61T Vishay US1M-E3/61T real image US1M-E3/61T label picture US1M-E3/61T label picture 2 US1M-E3/61T real image 2
Same model may have multiple batches, images only for reference.

US1M-E3/61T

Part No US1M-E3/61T
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 1KV 1A DO214AC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1000V (1kV)
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.7V @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 75ns
Current - Reverse Leakage @ Vr 10μA @ 1000V
Capacitance @ Vr, F 10pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package DO-214AC (SMA)
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 036146-US1M-E3/61T
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name US1M
Introduction Date August 23, 2006
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian US1M-E3/61T CAD Model

Description

The Vishay 036146-US1M-E3/61T is a high-quality standard diode that is designed for use in a wide range of electronic devices.

  • Maximum Reverse Voltage: 1000V (1kV)
  • Average Rectified Current: 1A
  • Forward Voltage @: 1A is 1.7V
  • Reverse Recovery Time: 75ns
  • Mounting: SMD mounted
  • Package: DO-214AC (SMA) package
  • Product Status: active
  • Demand: high demand
