Products specifications

Reference Date Code 2016+

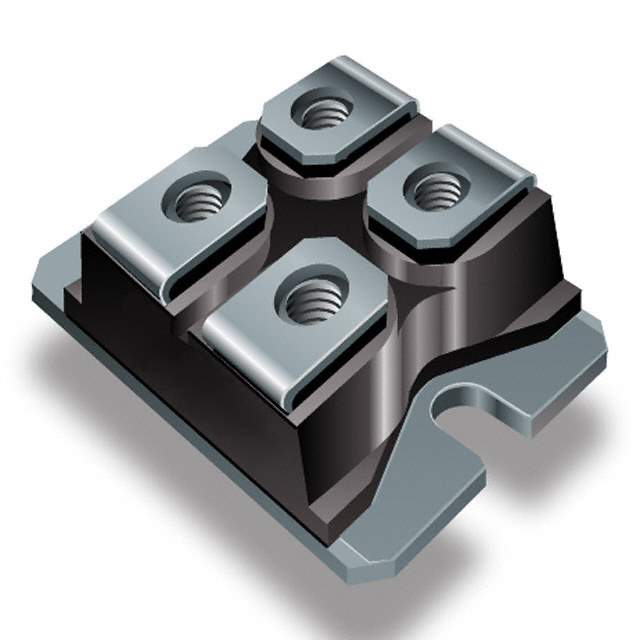

Reference case SOT-227
Manufacturer Vishay
Manufacturer Homepage www.vishay.com
Win Source Part Number 728115-UFB60FA60P
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian UFB60FA60P CAD Model

Description

The UFB60FA60P is a Ultrafast Rectifier manufactured by Vishay. It is designed for high-frequency switching applications where fast recovery times are critical. This rectifier is commonly used in power factor correction (PFC) circuits and freewheeling diodes in inverters.

Applications

  • Power Factor Correction (PFC) circuits
  • Freewheeling diodes in inverters
  • High-frequency rectification
  • Switch-mode power supplies (SMPS)
  • Uninterruptible Power Supplies (UPS)

Features

  • Ultrafast recovery time
  • Low forward voltage drop
  • High surge current capability
  • High reliability

Benefits

  • Improved efficiency in high-frequency switching applications due to ultrafast recovery time.
  • Reduced power dissipation due to low forward voltage drop.
  • Robustness and reliability in demanding power applications due to high surge current capability.

Additional Details

The UFB60FA60P features a low reverse recovery charge (Qrr), which contributes to its fast switching characteristics. The specific package is likely TO-220 or similar, designed for efficient heat dissipation. Consult the datasheet for exact package and mounting information.

Technical Specifications (Estimates - Refer to Datasheet for precise values):

  • Repetitive Peak Reverse Voltage (VRRM): 600V
  • Average Forward Current (IF(AV)): 60A
  • Forward Voltage (VF): Refer to datasheet
  • Reverse Recovery Time (trr): Refer to datasheet
  • Operating Temperature: Refer to datasheet
  • Package Type: TO-220 or similar

Always consult the official Vishay datasheet for the UFB60FA60P Ultrafast Rectifier for the most accurate and up-to-date specifications and application guidelines.
