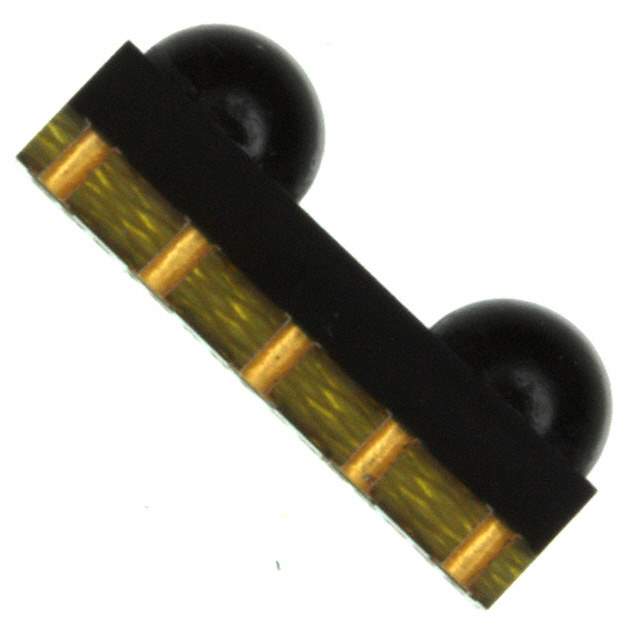

TSOP85238TR Real Image
Same model may have multiple batches, images only for reference.

TSOP85238TR

Part No TSOP85238TR
Manufacturer Vishay
Catalog Optical Sensors - Photo Detectors - Remote Receiver
Description IC IR RCVR MOD 38KHZ 2DOME SMD
Datasheet
TSOP85238TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay Semiconductor Opto Division
Part Status Obsolete(EOL)
Sensing Distance 35m
B.P.F. Center Frequency 38.0kHz
Operating Supply Voltage 2.7 V ~ 5.5 V
Operating Supply Current 1.6mA
Orientation Top View
Mounting SMD
Operating Temperature Range -25°C ~ 85°C (TA)
Win Source Part Number 759493-TSOP85238TR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name TSOP85238
Introduction Date March 20, 2008
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian TSOP85238TR CAD Model

Description

The TSOP85238TR is a sensor from Vishay Semiconductor Opto Division.

  • Operating Temperature Range: -25°C to 85°C (TA)
  • Orientation: Top view
  • Mounting Type: SMD
  • Sensing Distance: 35m
  • B.P.F. Center Frequency: 38.0kHz
  • Status: Obsolete (EOL)
  • ECCN: EAR99
