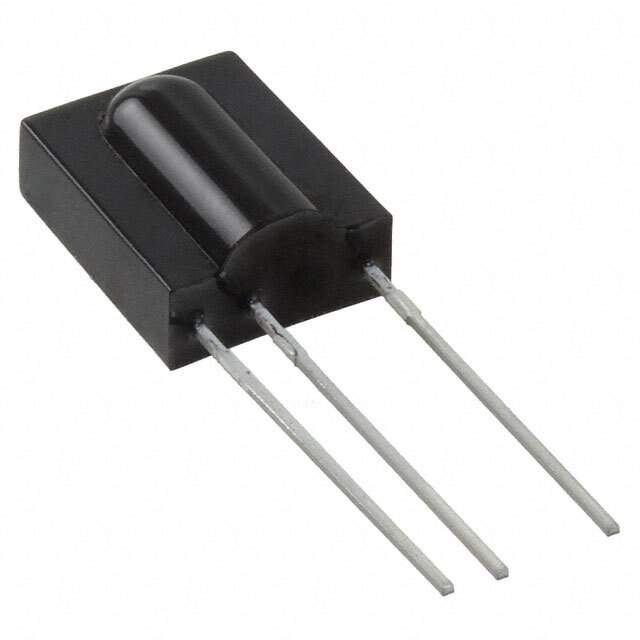

TSOP31236 Real Image
Same model may have multiple batches, images only for reference.

TSOP31236

Part No TSOP31236
Manufacturer Vishay
Catalog Optical Sensors - Photo Detectors - Remote Receiver
Description 3V PH.MODULE 36KHZ S.VIEW / IR Remote Receiver 36kHz 90° 24m 3-Pin
Datasheet
TSOP31236 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Bulk
Status Active
Sensing Distance 45m
Carrier Frequency 36.0kHz
Supply Voltage - Operating 2.5 V to 5.5 V
Operating Supply Current 350μA
Orientation Side View
Mounting Through Hole
Temperature Range - Operating -25°C to 85°C (TA)
Win Source Part Number 382665-TSOP31236
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name TSOP31236
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian TSOP31236 CAD Model

Description

The Vishay TSOP31236 is an active infrared (IR) sensor that is used for remote control applications.

  • Sensing Distance: 45m
  • Carrier Frequency: 36.0kHz
  • Supply Voltage Range: 2.5 V to 5.5 V
  • Operating Supply Current: 350μA
  • Mounting: through-hole
  • Temperature Range: -25°C to 85°C (TA)
