Same model may have multiple batches, images only for reference.

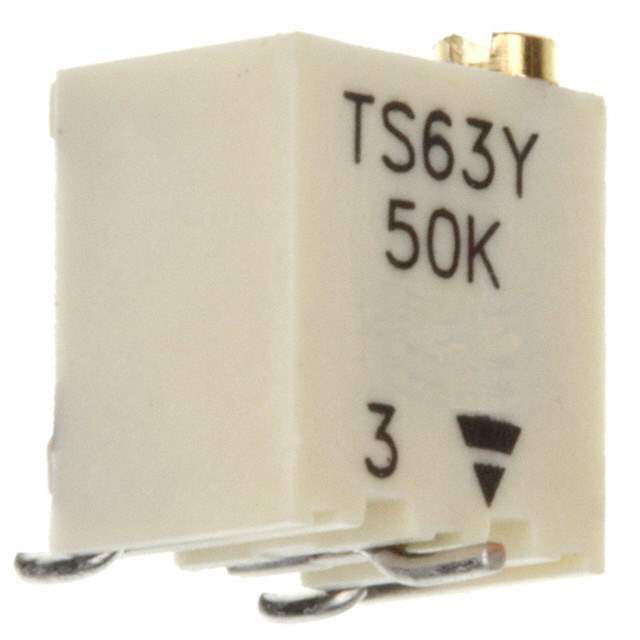

TS63Y503KR10 Real Image
Same model may have multiple batches, images only for reference.

TS63Y503KR10

Part No TS63Y503KR10
Manufacturer Vishay
Catalog Trimmer Potentiometers
Description TRIMMER 50K OHM 0.25W GW TOP ADJ / 50 kOhms 0.25W, 1/4W Gull Wing Surface Mount Trimmer Potentiometer Cermet 15.0 Turn Top Adjustment
Datasheet
TS63Y503KR10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Trimmer Potentiometers
Manufacturer Vishay Sfernice
Packaging Reel - TR
Resistance 50 kOhms
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 15
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Surface Mount
Termination Style Gull Wing
Size / Dimension Rectangular - 0.270" x 0.197" Face (6.85mm x 5.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8050
Other Part Number TS63Y-50KTR,TS63Y-50KDKR,TS63Y-50KCT
Standard Package 500
Win Source Part Number 1325921-TS63Y503KR10
Ultra Librarian 3D Model Ultra Librarian TS63Y503KR10 CAD Model

Description

The Vishay Sfernice TS63Y503KR10 is a surface mountable trimmer potentiometer that comes in a rectangular shape with gull wing termination style.

  • Resistance: 50 kOhms
  • Power: 0.25W
  • Tolerance: ±10%
  • Turns: 15
  • Adjustment: Top Adjustable
  • Operating Temperature Range: -55°C to 150°C
  • ROHS3 Compliant: Yes
