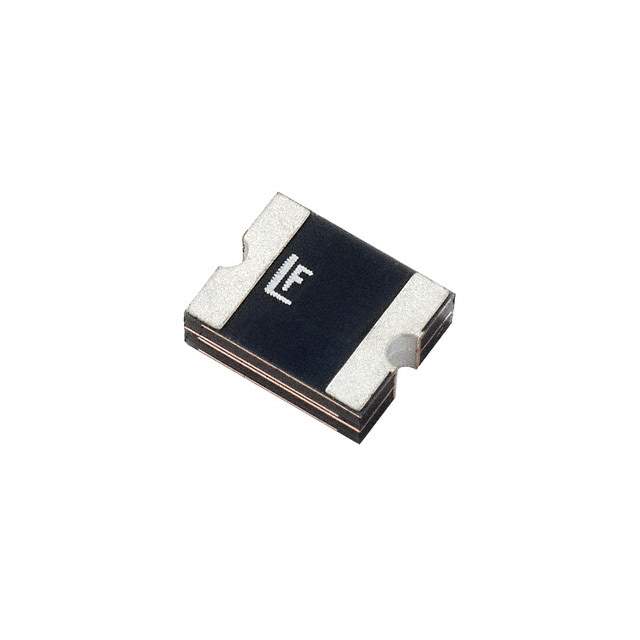

2016L500DR Real Image
Same model may have multiple batches, images only for reference.

2016L500DR

Part No 2016L500DR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 6V 5A 2016 / Polymeric PTC Resettable Fuse 6V 5 A Ih Surface Mount 2016 (5041 Metric), Concave
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Littelfuse Inc.
Series POLY-FUSE®, 2016L
Package Tape & Reel
Type Polymeric
Voltage - Max 6V
Current - Max 100 A
Current - Hold (Ih) (Max) 5 A
Current - Trip (It) 10 A
Time to Trip 2 s
Resistance - Initial (Ri) (Min) 5 mOhms
Resistance - Post Trip (R1) (Max) 25 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 2016 (5041 Metric), Concave
Dimension 0.200" L x 0.160" W (5.08mm x 4.07mm)
Thickness (Max) 0.063" (1.60mm)
Approval Agency cURus, TUV
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Other Names F8140DKR,F8140CT,F8140TR
Standard Package 1,500
Win Source Part Number 969621-2016L500DR
Ultra Librarian 3D Model Ultra Librarian 2016L500DR CAD Model

Description

The POLY-FUSE 2016L500DR is a polymeric PTC resettable fuse designed for circuit protection.

  • Fuse Type: Polymeric PTC Resettable
  • Package: Tape and Reel
  • Maximum Voltage: 6V
  • Maximum Current: 100A
  • Current Hold (Ih): 5A
  • Current Trip (It): 10A
  • Time to Trip: 2 seconds
  • Package/Case: 2016 (5041 Metric), Concave
  • Dimension: 0.200" L x 0.160" W (5.08mm x 4.07mm)
  • Resistance Initial (Ri): 5 mOhms
  • Resistance Post Trip (R1): 25 mOhms
  • Operating Temperature: -40°C to 85°C
  • ECCN: EAR99
  • Manufacturer: Littelfuse Inc.
  • Other Names: F8140DKR, F8140CT, F8140TR
  • Approvals: cURus and TUV
