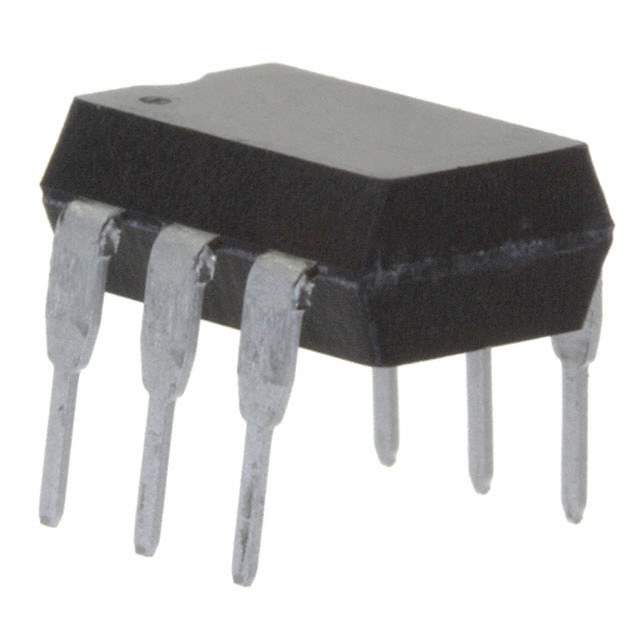

TCDT1124

Name: TCDT1124
Brand: Vishay
SKU: 360116
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TCDT1124
Manufacturer	Vishay
Catalog	Optoisolators - Transistor, Photovoltaic Output
Description	OPTOISOLATOR 5KV TRANS 6DIP
Datasheet	TCDT1124 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Isolators
Manufacturer	Vishay
Packaging	Tube/Rail
Status	Active
Number of Channels	1
Isolation Voltage	5000Vrms
Minimum DC Current Transfer Ratio	160% @ 10mA
Maximum DC Current Transfer Ratio	320% @ 10mA
Switching Turn-On and Turn-Off Time	4μs, 4.7μs
Rise and Fall Time	4μs, 4.7μs
Input Type	DC
Output Type	Transistor
Maximum Output Voltage	70V
Channel Output Current	50mA
Forward Voltage	1.25V
Continuous forward current- Max	60mA
Vce Saturation (Max)	300mV
Temperature Range - Operating	-55°C to 100°C
Mounting	Through Hole
Case / Package	6-DIP
Win Source Part Number	057039-TCDT1124
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian TCDT1124 CAD Model

Description

The Vishay TCDT1124 is a through-hole transistor output optocoupler that offers high isolation voltage of 5000Vrms and a maximum output voltage of 70V.

Forward Voltage: 1.25V
Vce Saturation (Max): 300mV
Minimum DC Current Transfer Ratio: 160% @ 10mA
Maximum DC Current Transfer Ratio: 320% @ 10mA
Switching Turn-On Time: 4μs
Switching Turn-Off Time: 4.7μs
Design: for use in isolator applications
Temperature Range: -55°C to 100°C
Channel Output Current: 50mA
Continuous Forward Current-Max: 60mA
Package: 6-DIP
Packaging: tube/rail packaging
