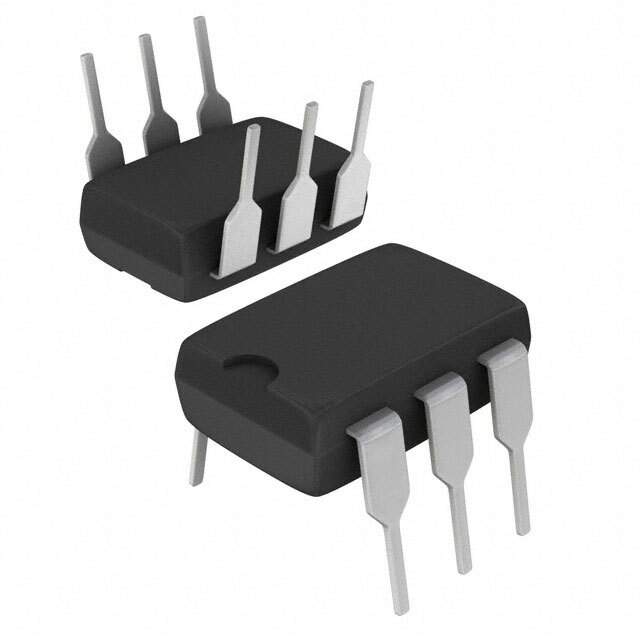

TCDT1101 Real Image
Same model may have multiple batches, images only for reference.

TCDT1101

Part No TCDT1101
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 5KV TRANS 6DIP / Optoisolator Transistor Output 5000Vrms 1 Channel 6-DIP
Datasheet
TCDT1101 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Transistor, Photovoltaic Output
Manufacturer Vishay Semiconductor Opto Division
Packaging Tube
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 40% @ 10mA
Current Transfer Ratio (Max) 80% @ 10mA
Turn On / Turn Off Time (Typ) 11µs, 7µs
Rise / Fall Time (Typ) 7µs, 6.7µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 32V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.25V
Current - DC Forward (If) (Max) 60 mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C ~ 110°C
Mounting Through Hole
Case / Package 6-DIP (0.300", 7.62mm)
Supplier Device Package 6-DIP
Base Product Number TCDT1101
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Standard Package 50
Win Source Part Number 1331884-TCDT1101
Ultra Librarian 3D Model Ultra Librarian TCDT1101 CAD Model

Description

The Vishay Semiconductor Opto Division TCDT1101 is an optoisolator with a transistor output and a photovoltaic input.

  • Output: Transistor
  • Input: Photovoltaic
  • Current Transfer Ratio: 40% @ 10mA to 80% @ 10mA
  • Voltage Rating: 5000Vrms
  • Voltage Output: 32V
  • Mounting: Through-hole
  • Package: 6-DIP (0.300", 7.62mm)
  • Input Application: DC
  • Temperature Range: -55°C to 110°C
  • ROHS3 Compliant: Yes
